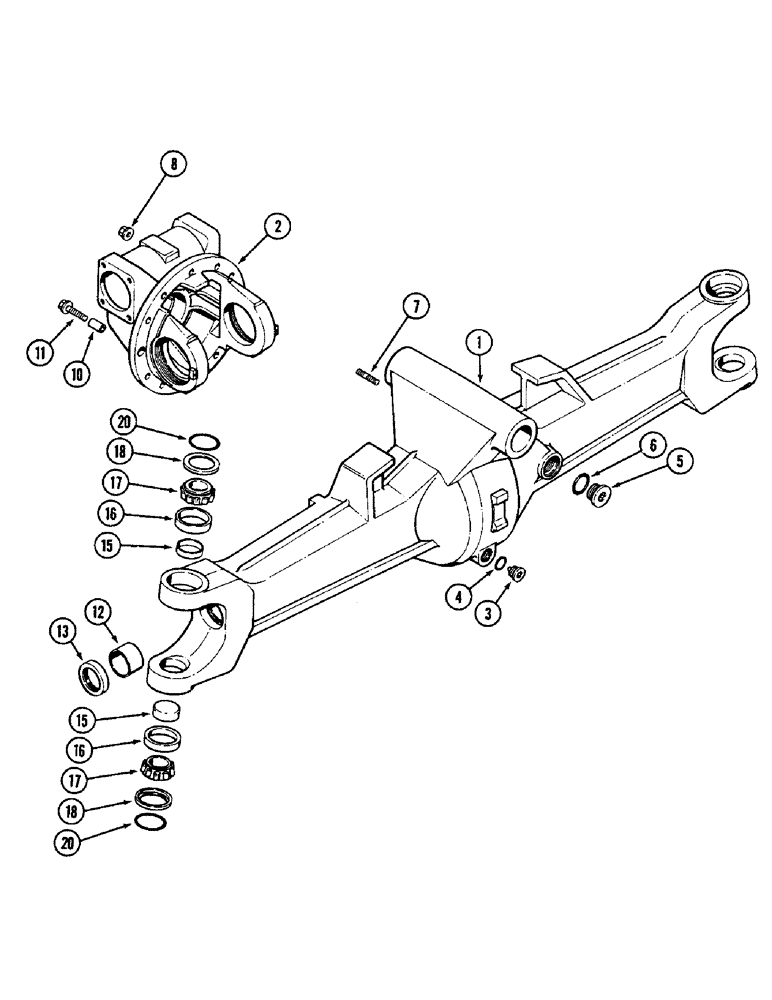

Запчасти Case IH 3294 (5-148) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER, ZF AXLE (05) - STEERING

A169532

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 20 in this figure and parts in Figures 5-150 thru 5-158

1шт.

1

A52093

HOUSING

- axle

1шт.

2

A52052

CARRIER

- differential (See Figure 5-152)

1шт.

3

A48804

PLUG

- drain, hex socket M24

1шт.

4

A52097

O-RING,2mm Thk x 21mm ID

- drain plug

1шт.

5

A48791

PLUG

- fill, hex socket M42

1шт.

6

A52096

O-RING,2.5mm Thk x 38mm ID

- plug

1шт.

7

A52101

STUD

- carrier to housing, M14 x 55 MM

2шт.

7

A52100

STUD

- carrier to housing, M14 x 58 MM

3шт.

8

A52103

NUT

- hex, M14

5шт.

10

A52099

SLEEVE CYLINDER

SLEEVE - housing

1шт.

11

A52094

FLANGE BOLT

BOLT - hex

6шт.

11

A52095

FLANGE BOLT

BOLT - flanged hex, M14 x 55 MM

1шт.

12

A52104

BUSHING

SLEEVE - bearing

2шт.

13

A52102

SEAL

- shaft

2шт.

15

A52109

CAP COVER

CAP - end

4шт.

16

H753525

CUP

- bearing (Replaces A52110)

4шт.

17

H753533

BEARING CONE

CONE - bearing (Replaces A52111)

4шт.

18

A52112

SEAL

- cap

4шт.

20

A52113

O-RING,57 mm ID

- steering pivot

4шт.
