(5-146) - FRONT AXLE UNIVERSAL JOINT, CARRARO AXLE

Запчасти Case IH 3294 (5-146) - FRONT AXLE UNIVERSAL JOINT, CARRARO AXLE (05) - STEERING

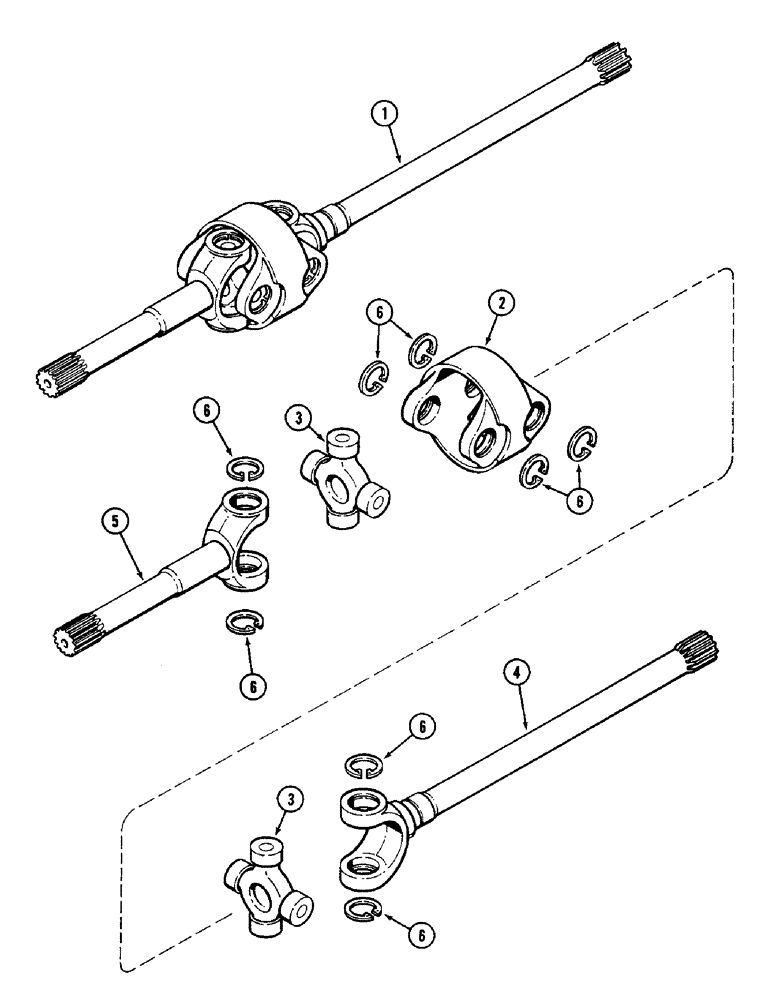

Схема запчастей Case IH 3294 - (5-146) - FRONT AXLE UNIVERSAL JOINT, CARRARO AXLE (05) - STEERING
2
3
1
6
6
5
6
4
6
6
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A48044

SHAFT

UNIVERSAL JOINT ASSEMBLY - front axle (Carraro no. 107550), Includes: Ref. 2 - 6

2шт.

2

A48154

HOUSING

- universal joint (Carraro no. 113438)

1шт.

3

A48155

UNIVERSAL JOINT

CROSS - universal joint (Carraro no. 113436)

2шт.

4

A48152

SHAFT

- universal joint, long (Carraro no. 113434)

1шт.

5

A48153

SHAFT

- universal joint, short (Carraro no. 113435)

1шт.

6

A48156

CIRCLIP

RING - retaining, shaft (Carraro no. 113437)

8шт.
