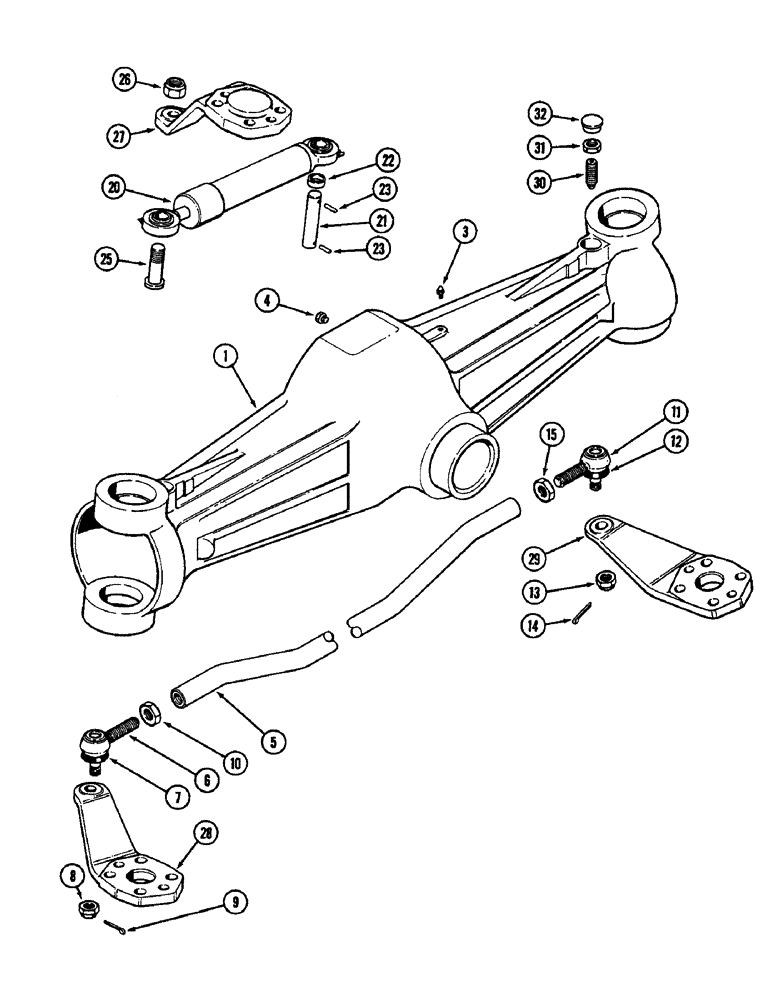

Запчасти Case IH 3294 (5-134) - FRONT AXLE HOUSING AND TIE ROD, CARRARO AXLE (05) - STEERING

A168841

SHAFT

AXLE ASSEMBLY - front (Carraro no. 113114), Includes: Ref. 1 - 32 in this figure and parts in Figure 5-138 thru 5-144, Start Serial: 16239354

1шт.

A156672

SHAFT

AXLE ASSEMBLY - front (Carraro no. 113114) (Order A168841), Includes: Ref. 1 - 32 in this figure and parts in Figures 5-136 and 5-140 thru 5-144, Serial Range: -16239354

1шт.

When A48124, A48053, and A48054 are ordered, supply A168736, A182245 and A168737 for A156672 axle assembly.

1шт.

1

A48020

HOUSING

- front axle (Carraro no 107374)

1шт.

3

K965231

BREATHER

- axle housing (Carraro no. 104988)

1шт.

4

K965263

PLUG

- housing drain (Carraro no. 92269)

1шт.

5

A168736

ROD

TIE ROD - front axle (Carraro no. 118328) (Replaces A48124) (See note)

1шт.

When A48124, A48053, and A48054 are ordered, supply A168736, A182245 and A168737 for A156672 axle assembly.

1шт.

6

A48125

END

ASSEMBLY - tie rod, right (Carraro no. 107620), Includes: Ref. 7 - 9

1шт.

7

A48164

COVER

BOOT - tie rod end (Carraro no. 43965)

1шт.

8

A48163

NUT

- tie rod (Carraro no. 22358)

1шт.

9

632-632

COTTER PIN,M3.2 x 32

PIN - cotter, nut retaining (Carraro no. 25567)

1шт.

10

A48126

NUT

- tie rod, right (Carraro no. 107759)

1шт.

11

A48127

END

ASSEMBLY - tie rod, left (Carraro no. 107619), Includes: Ref. 12 - 14

1шт.

12

A48164

COVER

BOOT - tie rod end (Carraro no. 43965)

1шт.

13

A48163

NUT

- tie rod (Carraro no. 22358)

1шт.

14

632-632

COTTER PIN,M3.2 x 32

PIN - cotter, nut retaining (Carraro no. 25567)

1шт.

15

A48128

NUT

- tie rod, left (Carraro no. 107760)

1шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-128)

2шт.

21

A48120

PIN

- cylinder mounting (Carraro no. 107762)

2шт.

22

K395108

BUSHING

SPACER - mounting pin (Carraro no. 114557) (Replaces A48121)

2шт.

23

A48166

PIN

- upper spirol, M8 x 45 MM (Carraro no. 24447)

4шт.

25

A48122

PIN

- cylinder mounting (Carraro no. 107761)

2шт.

26

A163188

NUT

- hex lock, mounting pin retaining, M22 x 1.5 MM (Carraro no. 22442)

2шт.

27

A48052

ARM

- steering, upper (Carraro no. 107742)

2шт.

28

A182245

ARM

- steering, lower right (Carraro no. 118329) (Replaces A481214) (See note)

1шт.

When A48124, A48053, and A48054 are ordered, supply A168736, A182245 and A168737 for A156672 axle assembly.

1шт.

29

A168737

ARM

- steering, lower left (Carraro no. 118330) (Replaces A48054) (See note)

1шт.

When A48124, A48053, and A48054 are ordered, supply A168736, A182245 and A168737 for A156672 axle assembly.

1шт.

30

A48042

ADJUSTMENT SCREW,M18 x 2.5 x 68mm

SCREW - housing bearing adjusting (Carraro no. 107719)

4шт.

31

K956932

JAM NUT

- hex jam, M18 (Carraro no. 22132)

8шт.

32

A48043

PLUG

- adjusting screw hole (Carraro no. 107765)

4шт.
