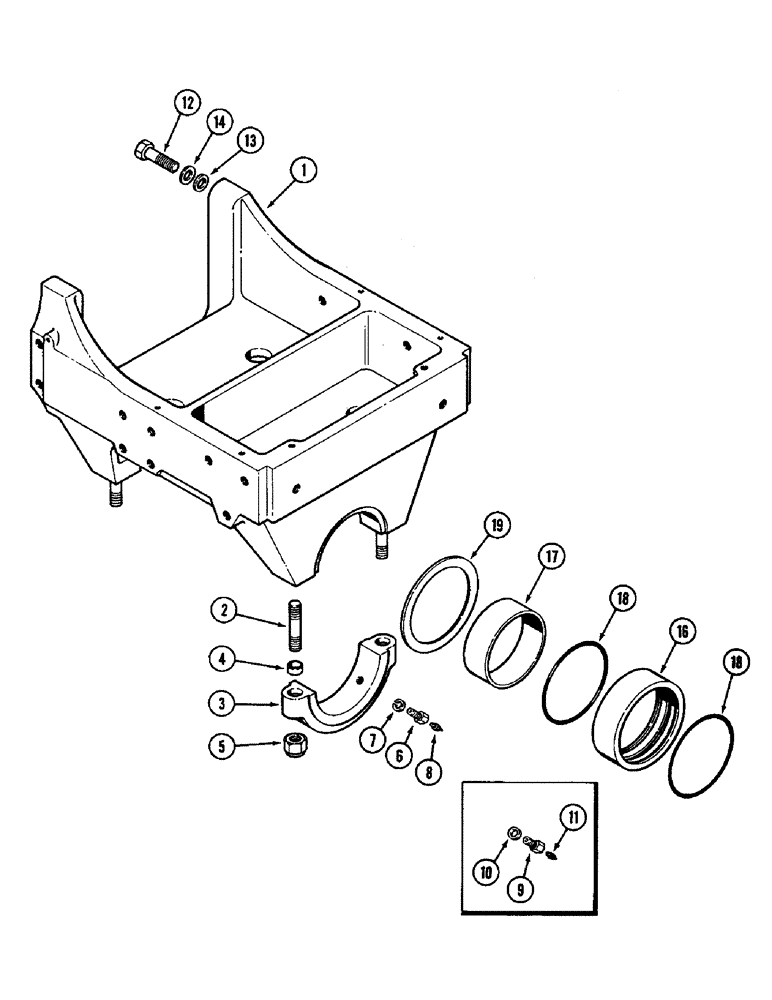

Запчасти Case IH 3294 (5-130) - FRONT AXLE SUPPORT, CARRARO AXLE (05) - STEERING

1

A164392

SUPPORT ASSY.

SUPPORT ASSEMBLY - front axle, Includes: Ref. 2 - 5

1шт.

2

A163186

STUD

-, Serial Range: cap-support

4шт.

3

NSS

NOT SOLD SEPARAT

CAP - support bearing (Order A164392) (Reference no. A164306)

2шт.

4

A163187

PIN

DOWEL - cap

4шт.

5

A163188

NUT

- cap retaining lock

4шт.

6

A169980

BOLT

LOCK - support bearing

2шт.

7

892-1112

LOCK WASHER,M12

WASHER - lock, M12

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PT straight

2шт.

9

A163189

BOLT

LOCK - support bearing (Order A169980, 892-1112 and 219-1)

2шт.

10

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

11

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease (Used with A13189 lock)

2шт.

12

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

4шт.

13

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch (21 x 37 x 2 MM)

4шт.

14

A26462

WASHER

- hardened

4шт.

16

A48022

BUSHING

- axle support (Carraro no. 107714)

1шт.

17

A48021

SLEEVE

- axle support (Carraro no. 107715)

1шт.

18

S5757

O-RING,6.237" ID x 6.443" OD x 0.103"

- support bushing (Carraro no. 28511)

2шт.

19

A48023

WASHER

- axle pivot thrust (Carraro no. 107713)

1шт.
