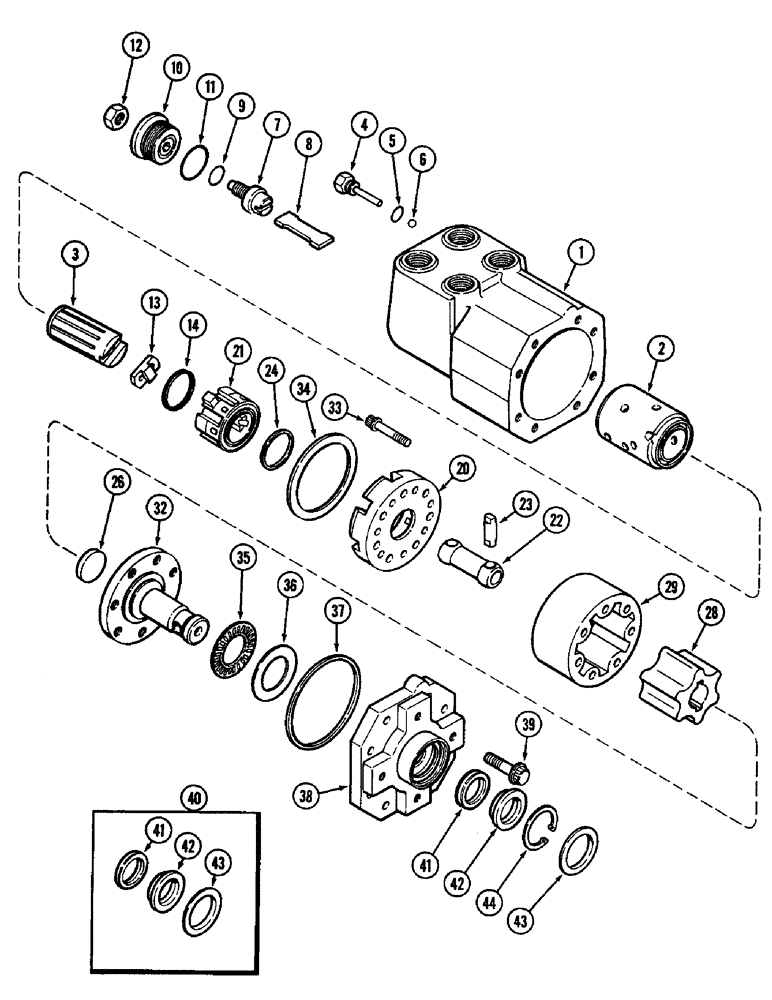

Запчасти Case IH 3294 (5-126) - HYDROSTATIC STEERING PUMP, MFD TRACTORS (05) - STEERING

A162639

PUMP

ASSEMBLY - steering, Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - sleeve and spool (Order A162639) (Reference no. A48133), Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve spool (Order A162639)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A162639)

1шт.

4

A47019

PLUG

AND PIN ASSEMBLY - pump, Includes: Ref. 5

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

211-207

BALL

- 9/32 inch (7 MM) diameter

1шт.

7

A45194

ADJUSTMENT SCREW

SCREW ASSEMBLY - adjusting, Includes: Ref. 8

1шт.

8

A45196

FAN

BLADE - torsion

2шт.

9

A45195

O-RING,0.556" ID x 0.073"

- adjusing screw

1шт.

10

A47006

PLUG

ASSEMBLY - adjusting screw, Includes: Ref. 11

1шт.

11

A47005

O-RING,1.053" ID

- adjusting screw plug

1шт.

12

87319446

JAM NUT,Hex, 3/8" - 24, Gr 5

- hex jam, 3/8 inch NC

1шт.

13

A47668

RING

- drive

1шт.

14

A47421

SEALING RING

ASSEMBLY - sleeve

1шт.

A47419

MANIFOLD

ASSEMBLY - pump, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - pump (Order A47419)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump (Order A47419)

1шт.

22

A48140

LINK

- drive

1шт.

23

F19636

PIN

- lock

2шт.

24

A47421

SEALING RING

ASSEMBLY - manifold

1шт.

26

A48141

SPACER

- rotor

1шт.

A48139

FRAME

SET - pump, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - pump (Order A48139)

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - pump (Order A48139)

1шт.

32

A48138

SHAFT

- input

1шт.

33

A48132

SCREW,1/4" x 1 5/8"

- cap, manifold, stator and shaft

7шт.

34

A160850

WASHER

- manifold

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust, needle

1шт.

A48143

WASHER

KIT - thrust, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.047 inch (1.19 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.053 inch (1.35 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.059 inch (1.50 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.065 inch (1.65 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.071 inch (1.80 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.077 inch (1.96 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.083 inch (2.11 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.089 inch (2.26 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.095 inch (2.41 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.101 inch (2.57 MM)

1шт.

37

A47004

RING

- seal, upper cover

1шт.

38

A47016

COVER

- upper pump and valve

1шт.

39

A48131

SCREW,1/4" x 1"

- cap, upper cover

8шт.

40

A47038

SEAL KIT,Pump Shaft

SEAL KIT - upper cover, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft (Reference no. A45667)

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER - back-up (Reference no. A44585)

1шт.

43

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.

44

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, backup washer

1шт.
