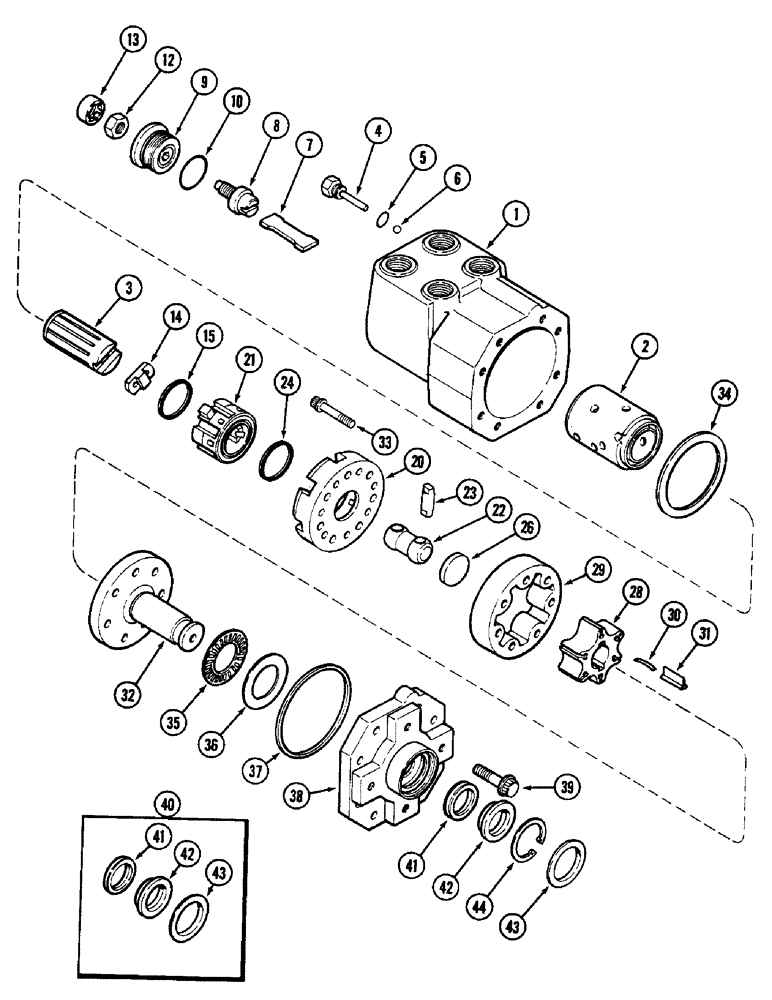

Запчасти Case IH 3294 (5-124) - HYDROSTATIC STEERING PUMP (05) - STEERING

A145863

PUMP

ASSEMBLY - steering, new, Includes: Ref. 1 - 44

1шт.

A47842

PUMP

3294, Reman For New P/N A145863, N.A. Only

1шт.

CORE

CORE-A/C COMPRESSOR

Return Number, For N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - housing

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

A47019

PLUG

AND PIN ASSEMBLY - pump

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

A47018

BALL

- 0.28 inch (7 MM) diameter

1шт.

7

A45196

FAN

BLADE - torsion

2шт.

8

A45193

ADJUSTMENT SCREW,3/8" - 24 x 1.44"

SCREW - pump adjusting

1шт.

9

A47006

PLUG

PUMP ASSEMBLY - pump

1шт.

10

A47005

O-RING,1.053" ID

- plug

1шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8-24 inch

1шт.

13

A47007

CAP

- pump

1шт.

14

A47668

RING

- drive

1шт.

15

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

A47419

MANIFOLD

ASSEMBLY - pump, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - (Order A47419)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - (Order A47419)

1шт.

22

A47014

LINK

- drive

1шт.

23

F19636

PIN

- lock

2шт.

24

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

26

A47021

BUSHING

SPACER - link

1шт.

A47013

ROTOR

SET - pump, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - (Order A47013)

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - (Order A47013)

1шт.

30

A43412

SPRING

- vane

6шт.

31

A43413

RING, PISTON

VANE - pump

6шт.

32

A47009

SHAFT

- input

1шт.

33

A47000

SCREW,1/4" x 1 1/8"

- 12 point cap, 1/4 NF x 1-1/4 inch

7шт.

34

A160850

WASHER

- hardened, 2-13/16 inch (71 MM)

1шт.

35

T56441

BEARING - thrust needle

1шт.

A47670

KIT

- thrust water, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.035 inch (0.89 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.041 inch (1.02 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.047 inch (1.19 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.053 inch (1.35 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.059 inch (1.50 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.065 inch (1.65 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.071 inch (1.80 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.077 inch (1.96 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.083 inch (2.11 MM)

1шт.

37

A47004

RING

- seal, 3-3/64 inch (77 MM)

1шт.

38

A47016

COVER

- pump rear

1шт.

39

A45197

12 PT SCREW,1/4" - 28 x 0.875"

SCREW - 12 point cap, 1/4 NF x 1 inch

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT - seal, cover, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - spacer

1шт.

43

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.

44

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.
