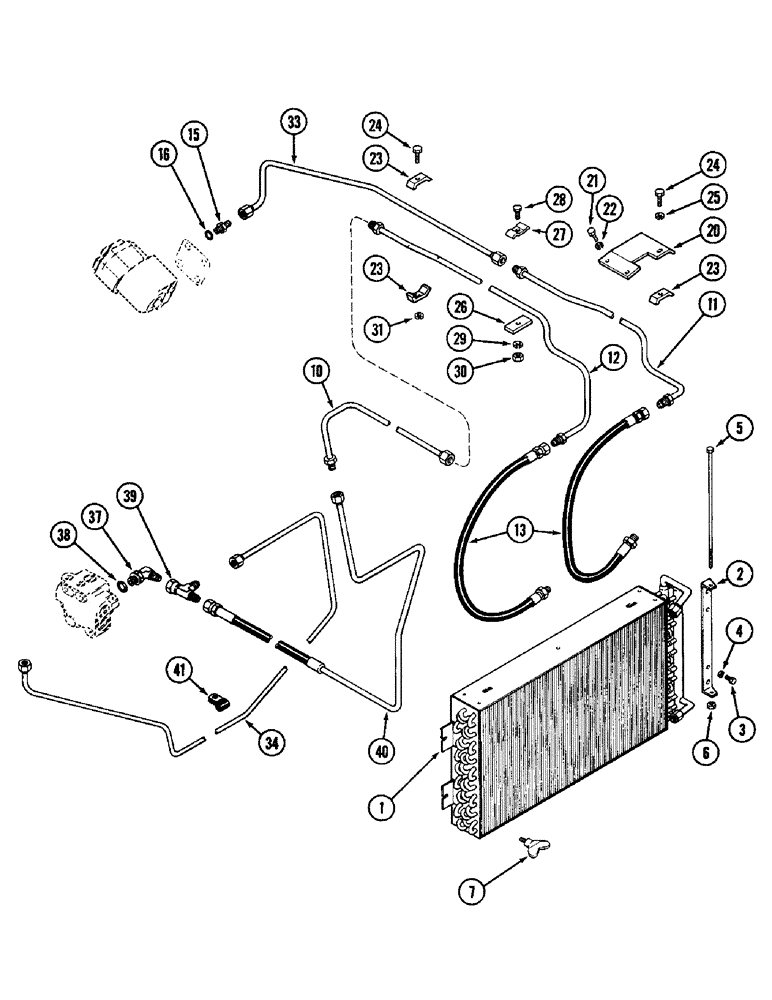

Запчасти Case IH 3294 (5-122) - OIL COOLER (05) - STEERING

1

A160190

COOLER

- oil, transmission

1шт.

2

A160194

SUPPORT

BRACKET - pivot

1шт.

3

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

113-72

BOLT,Hex, 1/4" - 20 x 12-1/2", Gr 5

- hex, 1/4 NC x 12-3/4 inch

1шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

7

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb, oil cooler lock, 5/16 inch NC

2шт.

10

A164595

TUBE ASSY.

TUBE - center section, oil cooler outlet

1шт.

11

A166581

TUBE ASSY.

TUBE - inlet, oil cooler

1шт.

12

A166580

TUBE ASSY.

TUBE - outlet, oil cooler

1шт.

13

A36162

TUBE

HOSE - inlet and outlet

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube x 3/4-16 inch thread, Incl. Ref 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch (24 x 3 MM)

1шт.

20

A145791

COVER

- cooler tubes

1шт.

21

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

23

A63323

CLAMP

- tube

3шт.

24

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

A60864

PLATE

- tube clamp

1шт.

27

A63323

CLAMP

- tube

2шт.

28

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

33

A147897

TUBE

- steering pump

1шт.

34

A164596

TUBE ASSY.

TUBE - brake, Serial Range: valve-sump

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degrees adjustable, 1/2 tube 3/4-16 inch thread, Includes: Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch (24 x 3 MM)

1шт.

39

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

ASSEMBLY - swivel, 1/2 tube 3/4-16 inch thread

1шт.

40

A164593

TUBE ASSY.

HOSE - oil cooler return

1шт.

41

49836

CLAMP

- tube

2шт.
