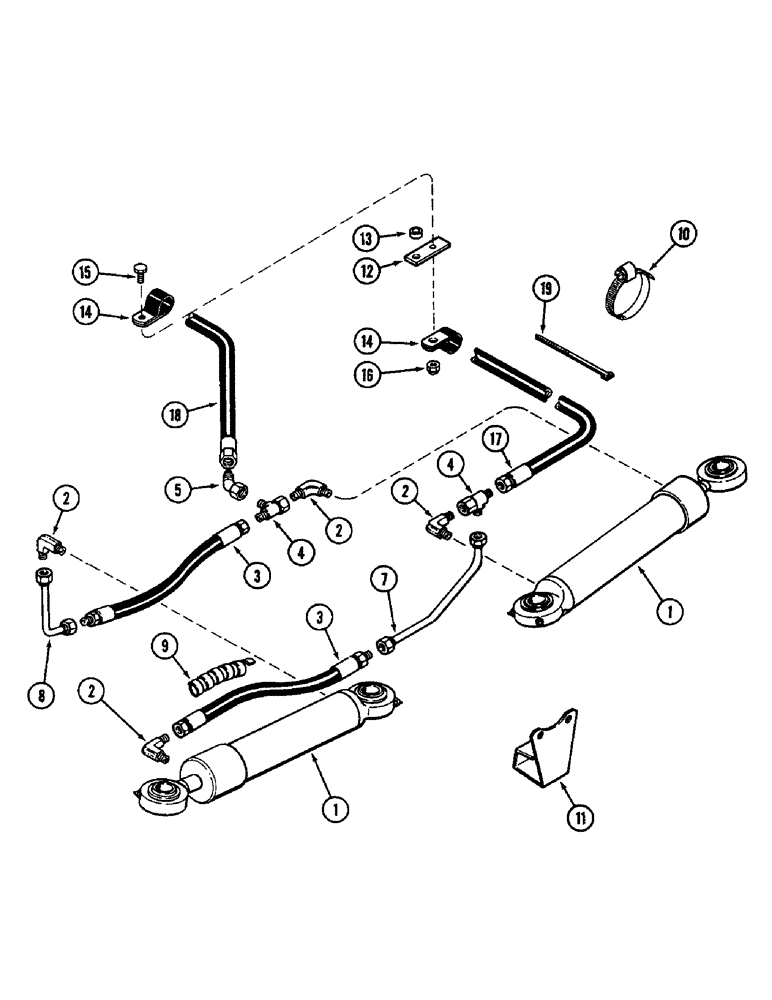

Запчасти Case IH 3294 (5-120) - STEERING SYSTEM, CARRARO AXLE (05) - STEERING

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-128)

2шт.

2

K260225

FITTING

ELBOW - hose to cylinder (Carraro no. 101522)

4шт.

3

A164626

HYDRAULIC HOSE,0.50" ID x 22.90", SAE 100R2 per SAE 517

0.50" x 22.90", SAE 100R2 per SAE J517 - Steering

2шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- steering connector

2шт.

5

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

ASSEMBLY - 45 degree swivel, 1/2 tube 3/4-16 inch thread

1шт.

7

A163194

TUBE

- steering, left (Carraro no. 110896)

1шт.

8

A163195

TUBE

- steering, right (Carraro no. 110895) (Order A180091 and A180092), Serial Range: -9931825

1шт.

8

A180092

PIPE

TUBE - steering, right, Start Serial: 9931825

1шт.

9

K956973

GUARD

- hose protective (Carraro no. 107739)

2шт.

10

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose retaining

2шт.

11

A163199

BRACKET

- hose to axle retaining (Carraro no. 110645), Serial Range: -9931825

1шт.

11

A180091

SUPPORT

BRACKET - hose to axle retaining, Start Serial: 9931825

1шт.

12

A67290

BRACKET

- steering hose support

1шт.

13

A67289

BUSHING

SPACER - hose support bracket

1шт.

14

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

2шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16

131-461

LOCK NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

17

REF

INSTRUCTION

HOSE - left, cylinder to steering pump (See Figure 5-118)

1шт.

18

REF

INSTRUCTION

HOSE - right, cylinder to steering pump (See Figure 5-118)

1шт.

19

R38237

STRAP

- hose retaining (Order L18337)

1шт.
