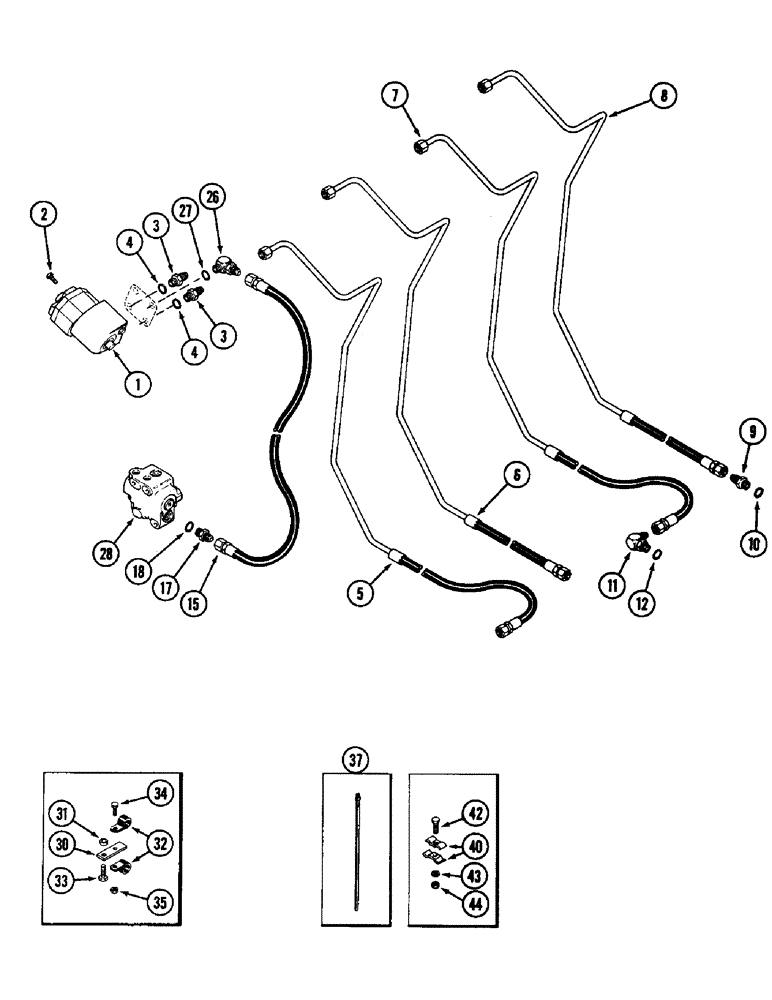

Запчасти Case IH 3294 (5-118) - HYDRODSTATIC STEERING SYSTEM (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Figure 5-124 or 5-126)

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

3

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - restricting (Right and left turn pots), Includes: Ref. 4

2шт.

5

A164868

HOSE ASSY.

HOSE - right, steering cylinder (Carraro MFD axle)

1шт.

6

A164862

HOSE ASSY.

HOSE - left, steering cylinder (Carraro MFD axle)

1шт.

7

A176926

HOSE ASSY.

HOSE - right, steering cylinder (ZF MFD axle)

1шт.

8

A176925

HOSE ASSY.

HOSE - left, steering cylinder (ZF MFD axle)

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4 inch thread (ZF MFD axle), Incl. Ref 10

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, 1/2 tube 3/4-16 inch thread PT (ZF MFD axle), Includes: Ref. 12

1шт.

15

A166607

HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

- Pump tube to valve 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 18

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 1/2 tube x 3/4 inch PT, Includes: Ref. 27

1шт.

28

REF

INSTRUCTION

VALVE - power brake (See Figure 7-242)

1шт.

30

A67290

BRACKET

- steering hose clamps

1шт.

31

A67289

BUSHING

SPACER - bracket to oil pan

1шт.

32

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- tube

2шт.

33

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

34

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

35

131-86

LOCK NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

37

R38237

STRAP

- nylon (Order L18337)

1шт.

40

A169743

CLAMP

- tube (Replaces A63323) (Order 49885)

1шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.
