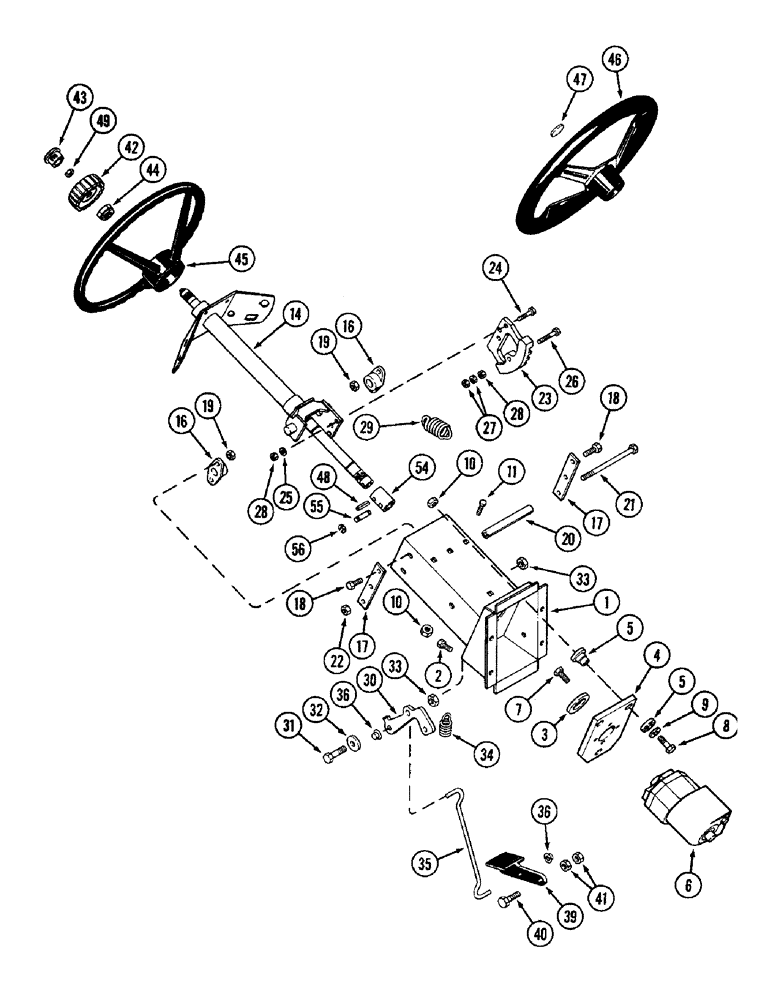

Запчасти Case IH 3294 (5-114) - ADJUSTABLE STEERING COLUMN (05) - STEERING

1

A167112

SUPPORT

- steering columm

1шт.

2

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - hex, 3/8 NC x 5/8 inch

4шт.

3

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- steering pump mounting

1шт.

4

A164625

PLATE

- steering pump mounting

1шт.

5

A141515

ISOLATOR

MOUNT - steering pump

3шт.

6

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Figure 5-124)

1шт.

7

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

9

195-524

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch (10 x 29 x 2 MM)

3шт.

10

131-133

NUT,Ret, 3/8"-16

2шт.

11

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - hex, 3/8 NC x 5/8 inch

1шт.

14

A167215

SHAFT

COLUMN - steering (See Figure 5-116)

1шт.

16

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- column pivot

2шт.

17

A143314

STRAP

- support brace

2шт.

18

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

19

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

20

A143315

BUSHING

SPACER - column support

1шт.

21

113-115

BOLT,Hex, 5/16" - 18 x 6", Gr 5

1шт.

22

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

23

A169439

PLATE

QUADRANT - column tilt (Replaces A164776)

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

26

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

27

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

29

A143316

SPRING

- tilt return

1шт.

30

A169260

LATCH

- column tilt (Replaces A67307)

1шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

32

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 MM)

1шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

34

A64125

SPRING

- tilt latch

1шт.

35

A164787

ROD

- tilt latch

1шт.

36

A165668

CAP

- latch rod

2шт.

39

A165426

PEDAL

- steering tilt

1шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

42

A141827

CAP

KNOB - lock, steering wheel

1шт.

43

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/8 inch (35 MM) hole size

1шт.

44

F19646

LOCK NUT,13/16"-20, Thin

NUT - wheel to shaft, hex, 13/16 inch NF

1шт.

45

A65544

STEERING WHEEL

(Hard vinyl)

1шт.

46

A167953

WHEEL

- steering (Leather)

1шт.

47

A180055

CAP ASSY.

INSERT - steering wheel

1шт.

48

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

49

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

54

A147291

COUPLING

- steering pump shaft

1шт.

55

A64000

PIN,9.42mm OD x 38.1mm L

- coupling to pump shaft

1шт.

56

A164905

SNAP RING,#37, Ext

Ring, Snap, , Pin #37, Ext

2шт.
