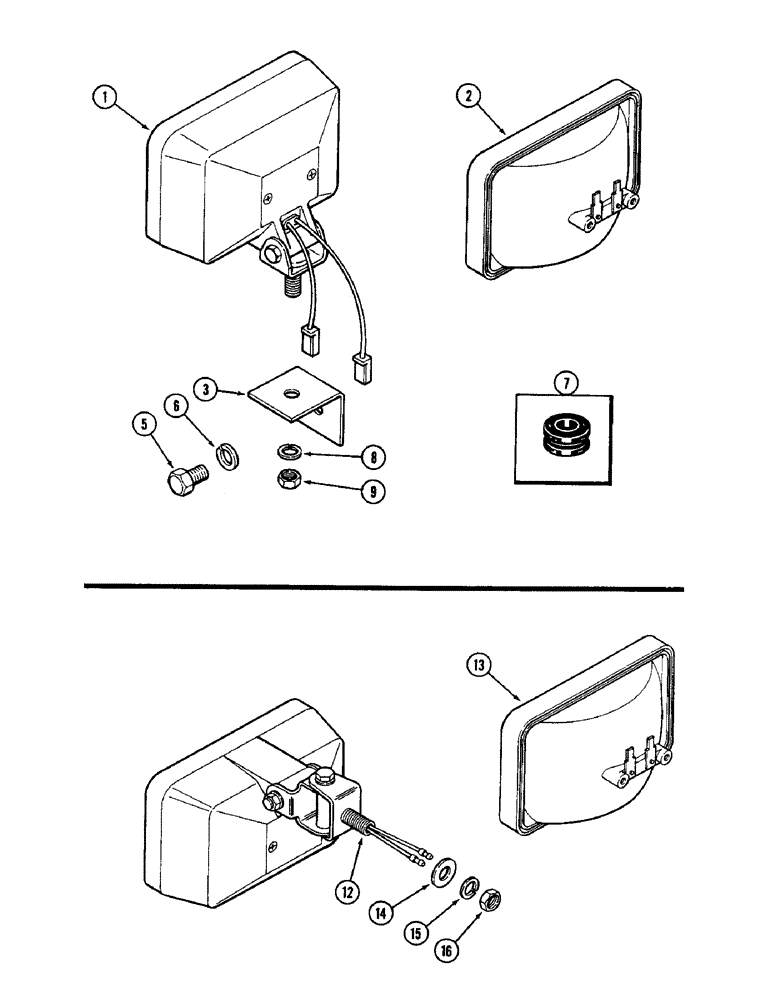

Запчасти Case IH 3294 (4-102) - FLOOD LAMP ATTACHMENTS, UPPER REAR (04) - ELECTRICAL SYSTEMS

A166652

LAMP

ATTACHMENT - upper flood, 4 Post ROPS (Machinery item) (Order components), Includes: Ref. 1 - 6

1шт.

1

A165347

LAMP

ASSEMBLY - flood (Order A177347 kit, see Figure 4-106), Includes: Ref. 2

1шт.

2

A48265

LAMP

BULB - sealed beam

1шт.

3

A166585

BRACKET

- mounting

2шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- flood lamp

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

12

A165065

LAMP

ASSEMBLY - upper flood, cab (Order A177347 kit, see Figure 4-106), Includes: Ref. 13 - 16

1шт.

13

A48265

LAMP

BULB - sealed beam (Includes screws)

1шт.

14

195-533

WASHER,1/2", SAE

(17/32 x 1-1/6 x 3/32") (14 x 27 x 2 mm) 1/2", SAE

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
