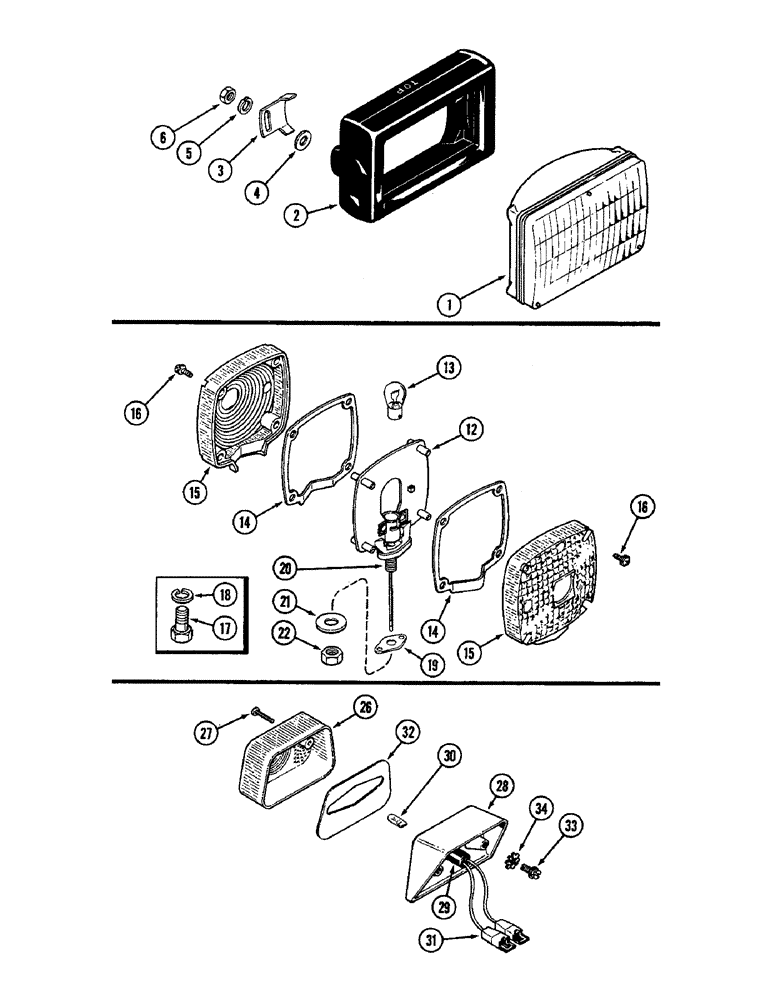

Запчасти Case IH 3294 (4-100) - HEAD LAMPS (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

- head, sealed unit (No. 4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - rubber

2шт.

3

A146355

CLAMP

CLIP - mounting

4шт.

4

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

A44201

LIGHT ASSY.

KIT - replacement, flashing lamps, Includes: Ref. 12 - 18

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp, flashing

1шт.

13

A41264

BULB,#1156, 12V

Lamp, Flashing #1156, 12V

1шт.

14

A43731

GASKET

- lens, flashing lamps

2шт.

A44202

KIT

LENS KIT - replacement, flashing lamps, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

LENS - lamp, flashing

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head Phillips, no. 9-32 x 3/4 inch, flashing lamps

8шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Cab mount only), flashing lamps Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Cab mount only), flashing lamps 1/4"

2шт.

19

F63435

GASKET

- lamp base, flashing lamps

1шт.

20

A45118

STUD

- mounting (Fender mount only), flashing lamps

1шт.

21

95-8

WASHER,1/2"

(Fender mount only), flashing lamps 1/2"

1шт.

22

129-125

NUT,1/2"-20, G5

- hex, 1/4 inch NF (Fender mount only), flashing lamps

1шт.

A143925

LAMP

ASSEMBLY - tail (See Figure 4-070), Includes: Ref. 26 - 32

2шт.

26

A47056

LENS

- red, tail lamp

1шт.

27

187-829

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - pan head slotted, no. 8-18 x 1 inch, tail lamp

2шт.

28

A47052

BASE

- lamp, tail

1шт.

29

A47054

SOCKET/RECEPTACLE

SOCKET ASSEMBLY - lamp (Includes terminal), tail lamp

1шт.

30

D71346

TAIL LAMP,12V

BULB - lamp (No. 168), tail

1шт.

31

223-166

CONNECTOR, ELEC

CONNECTOR - body female, tail lamp

2шт.

32

A47055

GASKET

- tail lamp

1шт.

33

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - hex self-tapping, 1/4 x 5/8 inch, tail lamp

4шт.

34

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch, tail lamp

4шт.
