Запчасти Case IH 3294 (4-092) - A162469 STARTER ASSEMBLY (CONTD) (04) - ELECTRICAL SYSTEMS

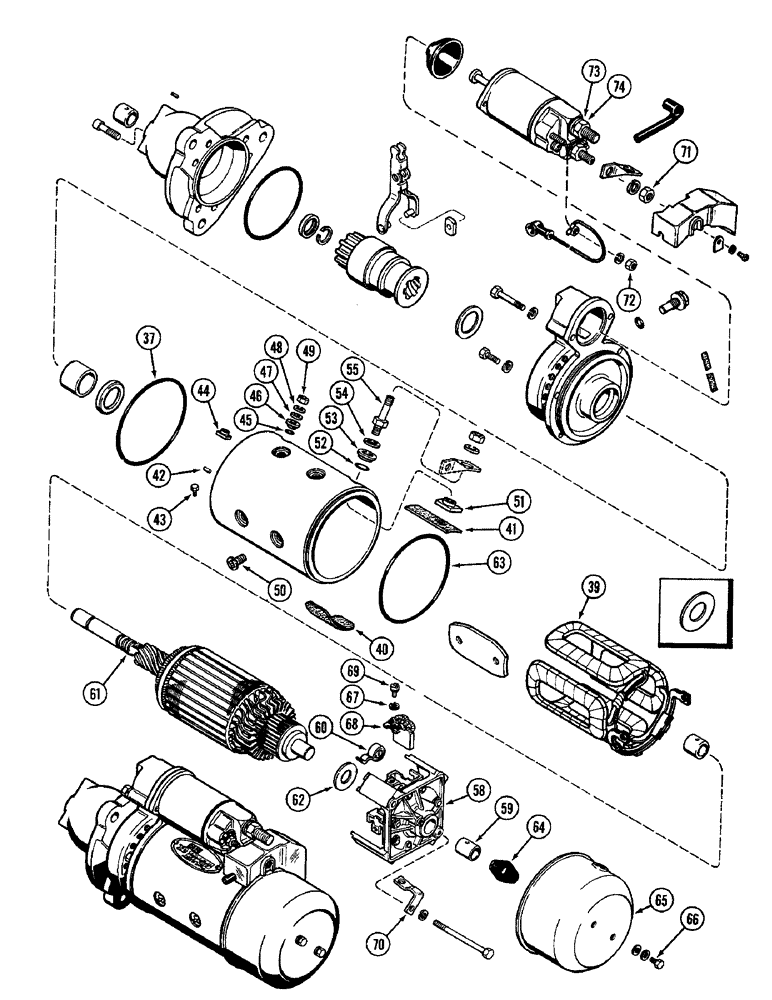

Схема запчастей Case IH 3294 - (4-092) - A162469 STARTER ASSEMBLY (CONTD) (04) - ELECTRICAL SYSTEMS
41
69
54
43
74
61
64
50
49
66
62
60
45
58
68
47
67
59
55
51
53
73
39
65
46
44
40
70
72
42
37
52
63
48
71

Артикул

Название

Примечание

Количество

A162469

STARTING MOTOR

STARTER ASSEMBLY, Includes: Ref. 37 - 74 in this figure and parts in Figure 4-090

1шт.

37

A47820

O-RING

- yoke to center bearing

1шт.

A47821

YOKE

ASSEMBLY - field coil, Includes: Ref. 39 - 55

1шт.

39

A47822

COIL

ASSEMBLY - field

1шт.

40

A47833

INSULATOR

- field

1шт.

41

A47832

INSULATOR

- field

1шт.

42

A47824

PIN

- yoke dowel

1шт.

43

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- hex, M5 x 0.8 x 10 MM

1шт.

44

A47825

BUSHING

- terminal insulating, inner

1шт.

45

A47826

RING

O-RING - terminal

1шт.

46

A47827

BUSHING

- terminal insulating, outer

1шт.

47

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 MM)

1шт.

48

892-1105

LOCK WASHER,M5

WASHER - lock, M5

2шт.

49

825-1105

NUT,M5, Cl 8

- hex, M5

1шт.

50

A47823

SCREW,M10 x 1.5 x 1.5mm

- coil, flat head, M10 x 1.5 x 20 MM

8шт.

51

A47829

BUSHING

- terminal insulating, inner

1шт.

52

A47830

RING

O-RING - terminal

1шт.

53

A47831

BUSHING

- terminal insulating, outer

1шт.

54

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

1шт.

55

A47828

BOLT

- terminal

1шт.

58

A47814

FRAME

ASSEMBLY - commutator end, Includes: Ref. 59 and 60

1шт.

59

A47784

BUSHING

- commutator end frame

1шт.

60

A47815

SPRING

- brush

4шт.

61

A47812

ARMATURE

ASSEMBLY - starter

1шт.

62

A47813

WASHER

- armature end

1шт.

63

39738

O-RING,4.609" ID x 0.139" Width

- end cover

1шт.

64

A47835

GASKET

- end cover

1шт.

65

A47834

COVER

- starter end

1шт.

66

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- hex, M5 x 0.8 x 10 MM

2шт.

67

892-1106

LOCK WASHER,M6

2шт.

68

A47817

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

69

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

- brush retaining, M5 x 0.8 x 12 MM

4шт.

70

A47818

CONNECTOR, ELEC

CONNECTOR - brush

2шт.

71

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

72

193-1000

NUT,Keps, w/LW,#10-32

- hex, no. 10-24

1шт.

73

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

74

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

Выбрано товаров: 37
