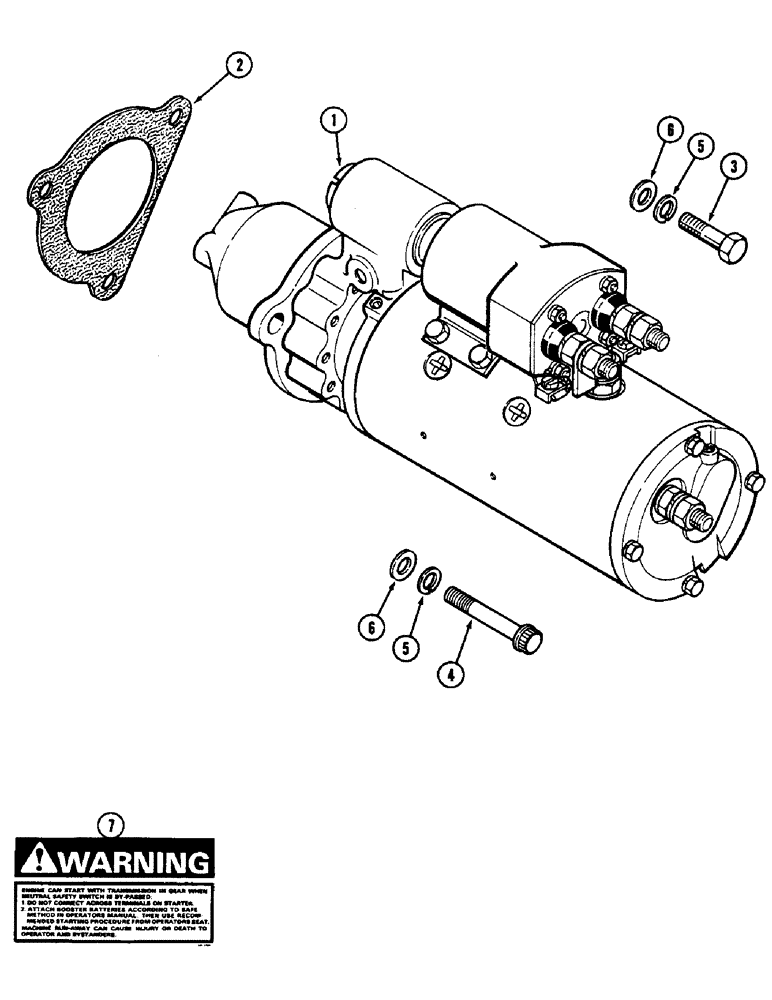

Запчасти Case IH 3294 (4-088) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-090)

1шт.

1

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

1

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

A27933

GASKET

GASKET - mounting

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - hex Polylok, 1/2 NC x 1-3/4 inch

2шт.

4

166-1007

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - Ferry head, 1/2 NC x 3-1/4 inch

1шт.

5

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

6

L30674

WASHER

WASHER - 1 inch (25 MM)

3шт.

7

321-3709

DECAL

DECAL - warning (On starter)

1шт.
