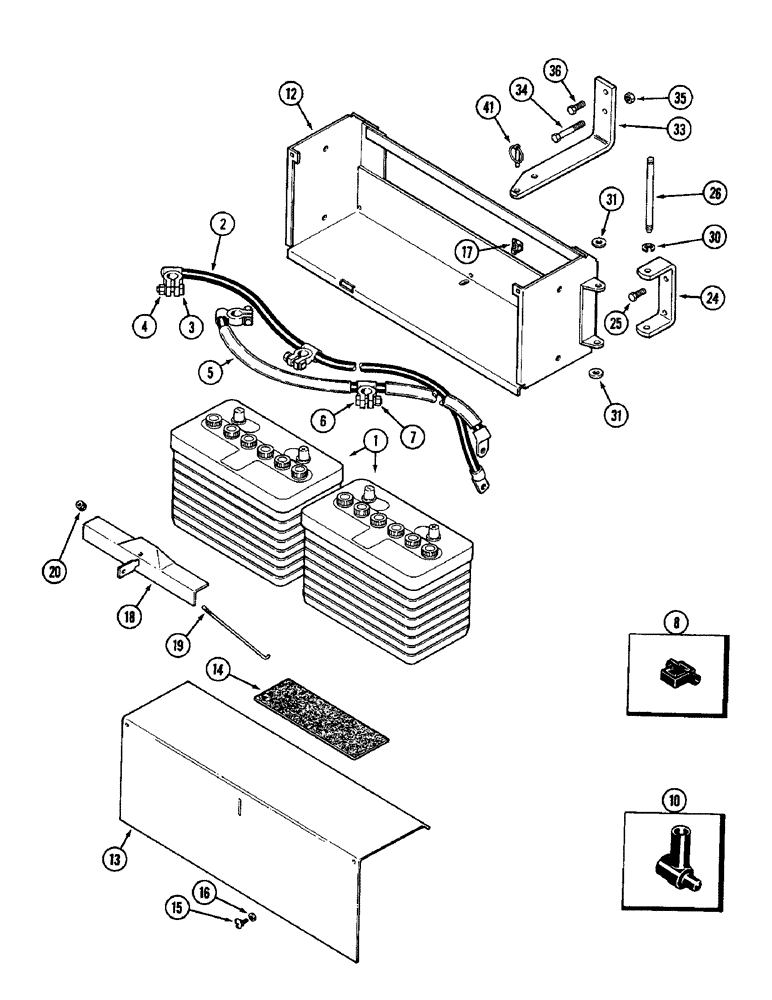

Запчасти Case IH 3294 (4-086) - BATTERIES, BOX AND CABLES (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt

2шт.

2

A162285

CABLE

ASSEMBLY - negative terminal, battery

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch

2шт.

4

129-516

NUT

- hex, 5/16 inch NC

2шт.

5

A162287

CABLE ASSY.

CABLE ASSEMBLY - positive terminal, battery

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch (Grade 2)

2шт.

7

129-737

NUT

- hex, 5/16 inch NC

2шт.

8

A139372

CAP

- battery terminal

2шт.

10

A181302

BOOT

COVER - battery cable to starter terminal

1шт.

12

A161390

BOX

- battery

1шт.

13

A161331

COVER

- battery

1шт.

14

A62469

COVER

TREAD - non-skid, battery cover

1шт.

15

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thrust, cover

2шт.

16

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

17

131-137

SPRING NUT,Ret, 5/16"-18

2шт.

18

A161329

CLAMP

- battery hold down

1шт.

19

A147915

BOLT

- hook, clamp

3шт.

20

131-923

NUT,Flg, 1/4"-20.G5

- hex flange, 1/4 inch NC

3шт.

24

A164175

BRACKET

SUPPORT - hinge, battery box

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

A164174

AXLE PIN

PIN - hinge, battery box

1шт.

30

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , hinge pin #50, .392" Dia, E-Type

2шт.

31

A39519

WASHER

- nylon, hinge pin

2шт.

33

A164173

BRACKET

- battery box support

1шт.

34

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, 3/8 inch NC

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

41

A30338

PIN

- battery box latch

1шт.

321-6714

DECAL

- caution, battery acid (Not shown, see page 9-426 and 9-428)

1шт.
