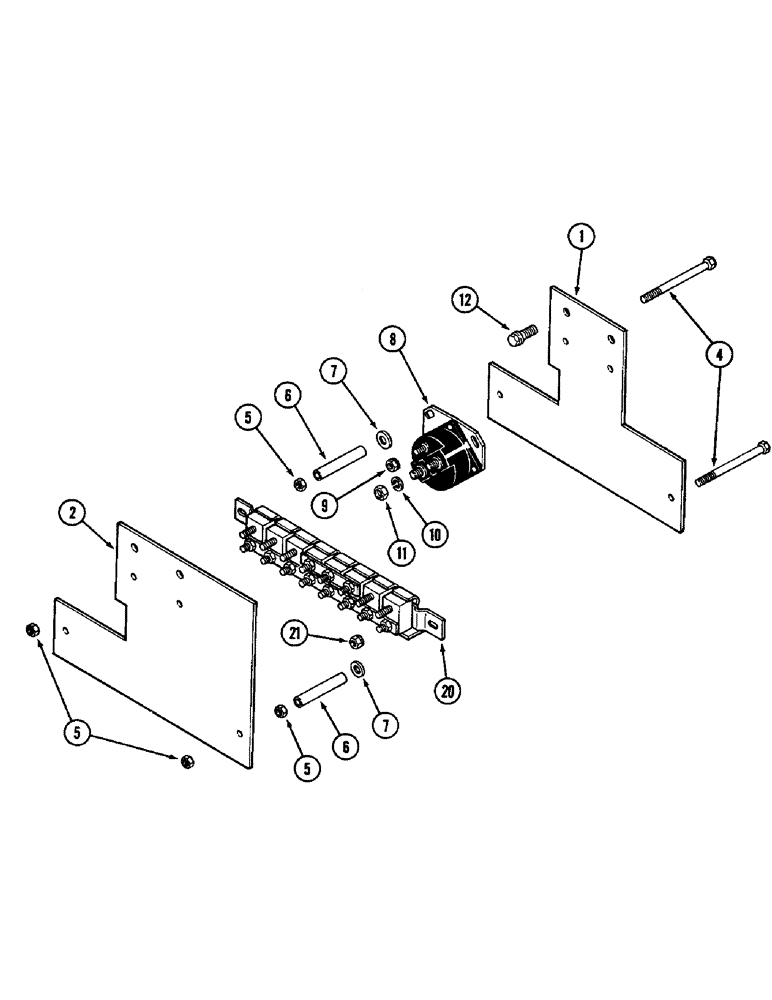

Запчасти Case IH 3294 (4-084) - SOLENOIDS AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS

1

A164563

BRACKET

- mounting, solenoid and circuit breaker

1шт.

2

A164992

PLATE ASSY.

PLATE - solenoid and circuit breaker

1шт.

4

113-28

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

6

A176895

SPACER

- cover to plate (Order R25287)

4шт.

7

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

4шт.

8

A39079

SOLENOID

ASSEMBLY - ignition

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- Keps, no. 10-32

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A165723

BREAKER

- circuit

1шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex lock, no. 10-32

6шт.
