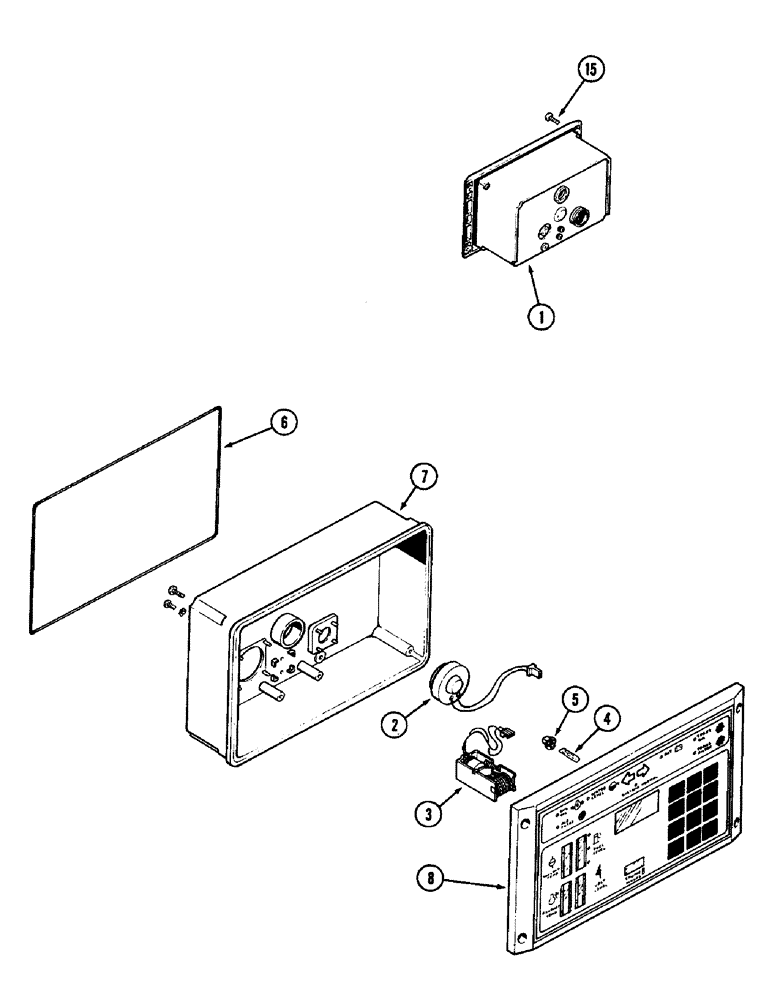

Запчасти Case IH 3294 (4-080) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

A187171

CLUSTER, INSTR.

CLUSTER, INSTRUMENT INSTRUMENT PANEL

1шт.

1935094C1

REMAN-INSTR CLUSTER

Reman-Instrument Cluster Remanufactured Instrument Panel

1шт.

1935093C1

CORE-CLUSTER, INSTR

Core-Instrument Cluster Return Number, Instrument Panel

1шт.

1

A169152

CLUSTER

CLUSTER ASSEMBLY - instrument (New) (Replaces A166783), Includes: Ref. 2 - 8

1шт.

1

AR169152

REMAN-INSTR CLUSTER

Reman-Instrument Cluster Assembly - instrument (Remanufactured)

1шт.

1

AC169152

CORE-CLUSTER, INSTR

Core-Instrument Cluster Return Number - cluster, use this number when returning cluster for credit

1шт.

2

A48886

BUZZER

ALARM - cluster

1шт.

3

A48887

GAUGE

COUNTER

1шт.

4

A48888

BULB

LAMP

4шт.

5

A48889

LAMP SOCKET

SOCKET - lamp

4шт.

6

A48890

GASKET

GASKET - instrument cluster

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - cluster

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - face, cluster

1шт.

15

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head, no. 10-16 x 3/4 inch

4шт.
