(4-072) - FORWARD COMPONENT HARNESS

Запчасти Case IH 3294 (4-072) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

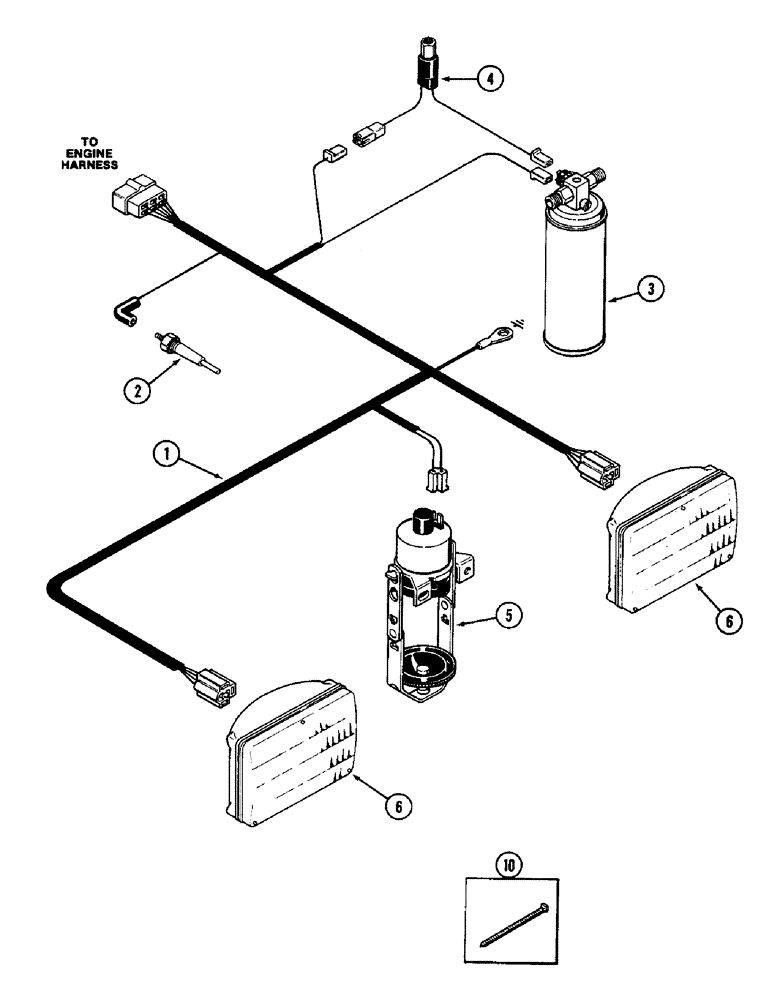

Схема запчастей Case IH 3294 - (4-072) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
6
6
3
10
2
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A163110

HARNESS

- forward

1шт.

2

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

3

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning (See Figure 9-486)

1шт.

4

REF

INSTRUCTION

SWITCH - air conditioning cutout (See page 9-486)

1шт.

5

A143381

SOLENOID

- ether start (See Figure 2-014)

1шт.

6

A139458

LAMP

- head (See Figure 4-100)

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
