(4-070) - REAR COMPONENT HARNESS

Запчасти Case IH 3294 (4-070) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

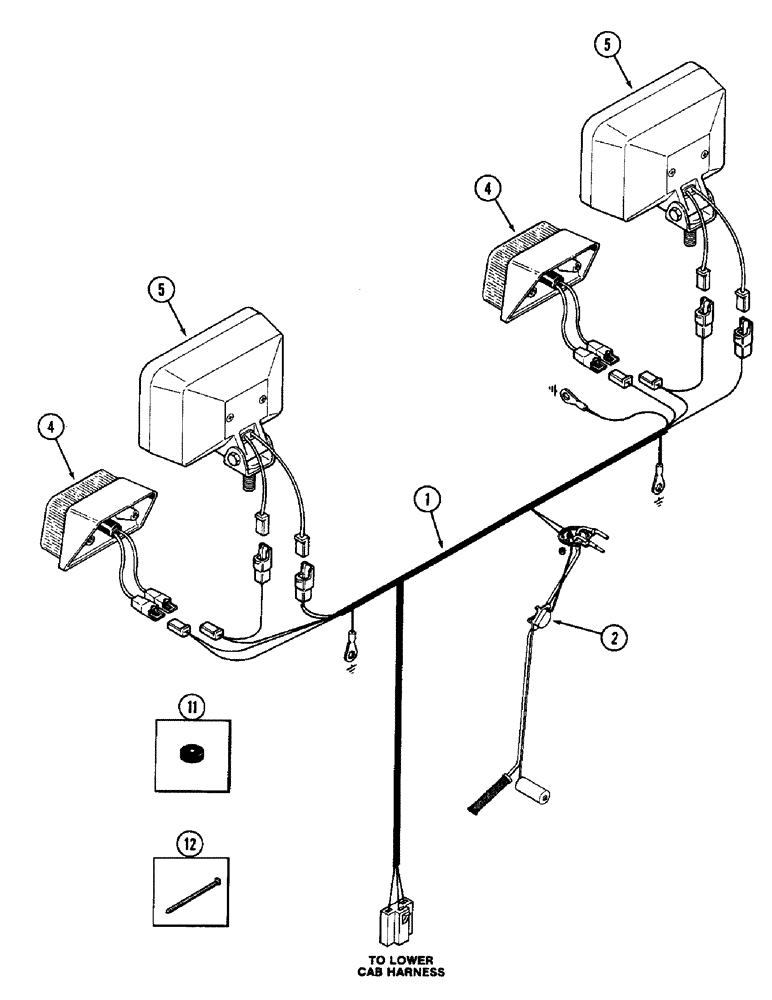

Схема запчастей Case IH 3294 - (4-070) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
1
5
12
11
2
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A167264

HARNESS

- rear lamp

1шт.

2

REF

INSTRUCTION

SENDER - fuel level (See Figure 3-60)

1шт.

4

A143925

LAMP

TAIL LAMP ASSEMBLY - (See Figure 4-100)

2шт.

5

REF

INSTRUCTION

LAMP - rear flood (See Figure 4-104)

3шт.

11

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rear flood lamp wire

2шт.

12

L18837

BRACE

STRAP - nylon tie

1шт.
