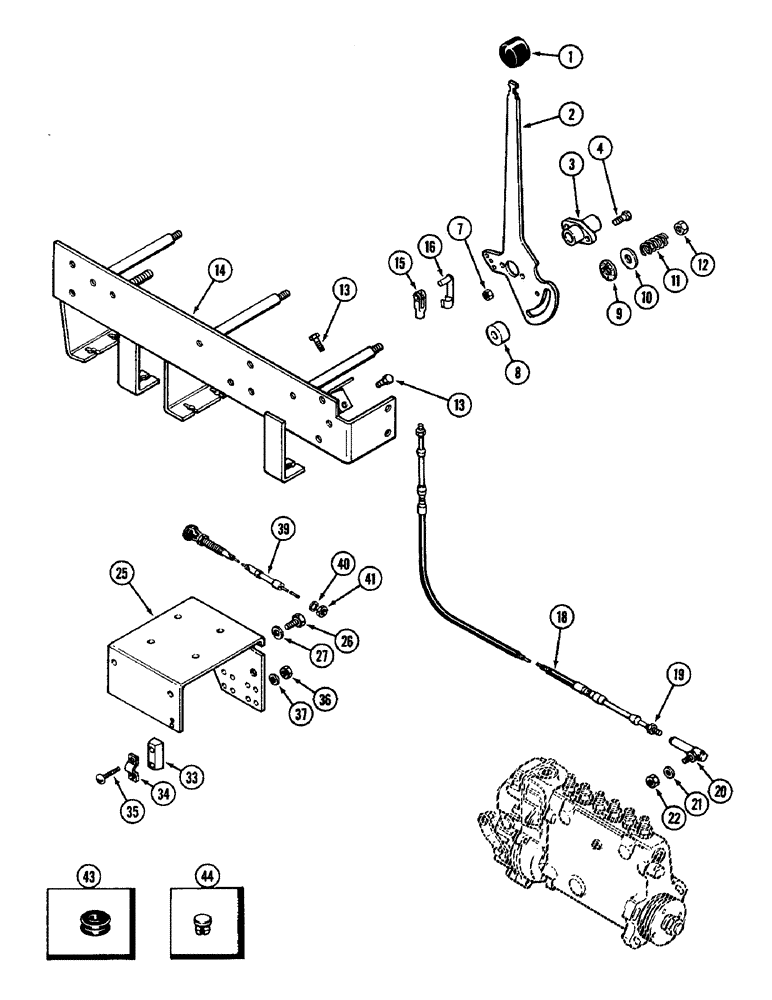

Запчасти Case IH 3294 (3-058) - THROTTLE CONTROL, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A177439

KNOB

- throttle lever, red

1шт.

2

A180498

LEVER

- hand, throttle control (Replaces A141390)

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - pivot, hand lever

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A160622

BUSHING

SPACER - lever

1шт.

9

A61069

DISC

- friction

1шт.

10

195-2172

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 MM)

1шт.

11

A65583

SPRING

- fiction disc pressure

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/38 inch NC

2шт.

13

A67294

BOLT

- lock, lever adjustment

2шт.

14

REF

INSTRUCTION

SUPPORT - console control (See Figure 9-386)

1шт.

15

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - control cable to lever

1шт.

16

A149683

PIN

- spring

1шт.

18

A67296

CABLE

ASSEMBLY - control

1шт.

19

129-315

NUT,#10-32, LH

2шт.

20

A165466

BALL JOINT

FITTING - control cable throttle

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

22

129-121

NUT,1/4"-28, G5

1шт.

25

A160611

BRACKET

- control cables

1шт.

26

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

A160612

SPACER

- clamp, throttle cable

1шт.

34

A75815

CLAMP

- throttle cable

1шт.

35

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

- round head, no. 10-24 x 1-1/4 inch

2шт.

36

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-24

2шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

39

A164766

CABLE

- stop control, fuel pump (Order A165986)

1шт.

40

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

41

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

43

A145925

GROMMET

- control cables

2шт.

44

A67295

PLUG

- control cables, 7/16 inch (11 MM)

1шт.

44

A162961

PLUG

- control cables, 11/16 inch (18 MM) ID

1шт.
