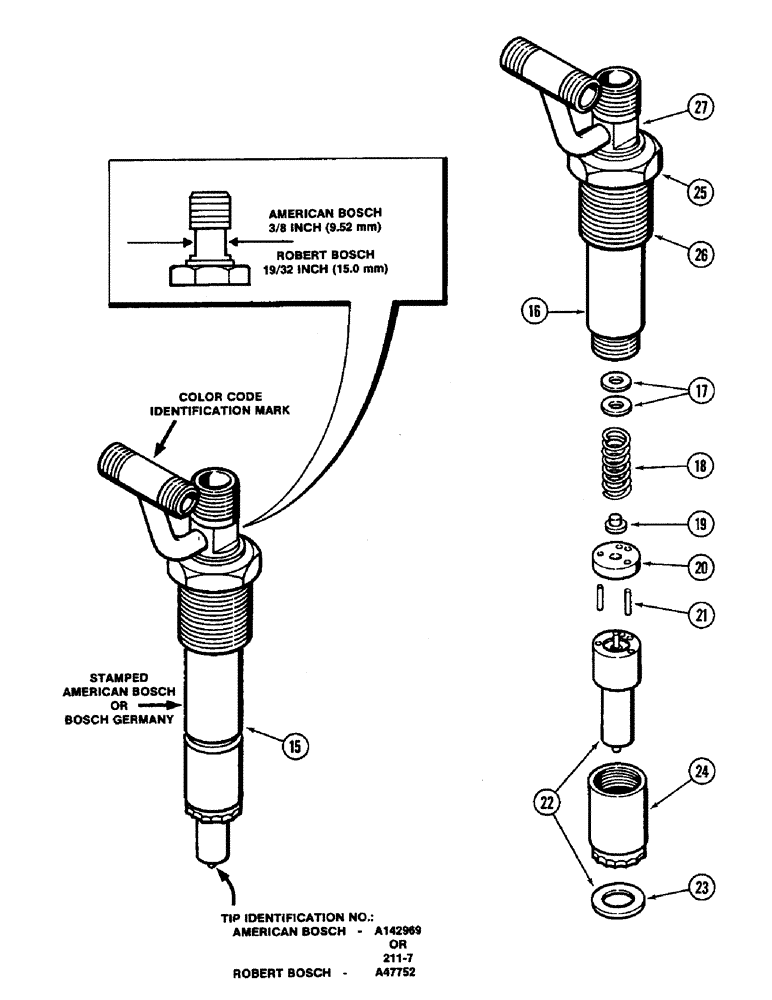

Запчасти Case IH 3294 (3-056) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (CONTD) (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
A156327
NOZZLE CAP
NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 15 - 27 in this figure and parts in Figure 3-054
6шт.
A156327R
REMAN-INJECT NOZZLE
3294 (1/83-12/85)
6шт.
A156327C
CORE-NOZZLE, INJECT
Return number
1шт.
15
NSS
NOT SOLD SEPARAT
NOZZLE ASSEMBLY - fuel injection, Robert Bosch (Reference No. A156326), Includes: Ref. 16 - 27
1шт.
Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification.
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - nozzle (Order A156327)
1шт.
A48186
KIT
- shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.00 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.04 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.08 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.10 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.14 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.18 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.20 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.24 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.28 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.30 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.34 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.38 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.40 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.44 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.48 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.50 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.54 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.58 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.60 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.64 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.68 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.70 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.74 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.78 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.80 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.84 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.88 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.90 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.94 MM (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.98 MM (5 in kit)
1шт.
18
A48198
SPRING
- nozzle pressure
1шт.
19
A48203
SEAT
- nozzle pressure spring
1шт.
20
A48199
VALVE
STOP - nozzle
1шт.
21
A48200
PIN
- valve stop
2шт.
22
A47752
NOZZLE INJECTION
TIP ASSEMBLY - nozzle injector, Includes: Ref. 23
1шт.
23
A76640
GASKET
- nozzle
1шт.
When nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.
1шт.
24
A48201
NUT
CAP NUT - nozzle end
1шт.
25
A48197
NUT
- nozzle
1шт.
26
A48202
RING
- retaining
1шт.
27
A48196
RING
- retaining
1шт.
Выбрано товаров: 48
