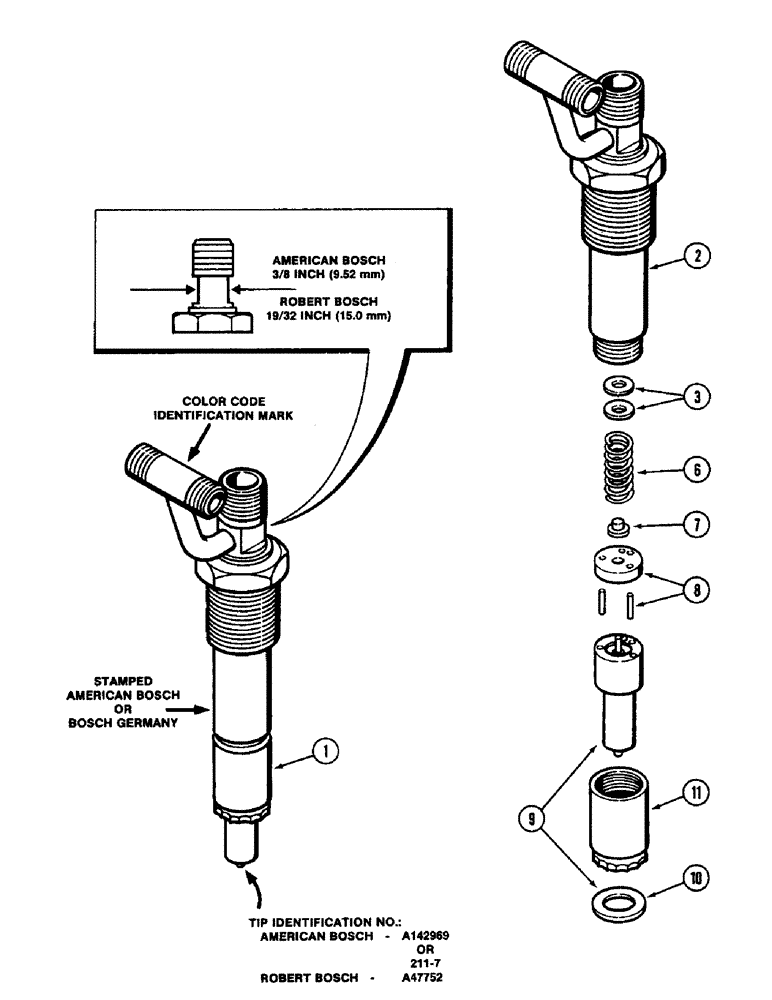

Запчасти Case IH 3294 (3-054) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENITFICATION (03) - FUEL SYSTEM

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 11 in this figure and parts in Figure 3-056

6шт.

A156327R

REMAN-INJECT NOZZLE

3294 (1/83-12/85)

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Reference no. A152486), Includes: Ref. 2 - 11

1шт.

Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.062 inch (1.57 MM) 6 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch (0.05 MM) 80 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch (.018 MM) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (0.25 MM) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch (0.64 MM) 20 in kit

1шт.

6

A44864

SPRING

- nozzle pressure

1шт.

7

A44863

SEAT

- nozzle pressure spring

1шт.

8

A44862

VALVE

STOP - nozzle with pin (Includes dowel pins)

1шт.

9

A142969

NOZZLE CAP

TIP ASSEMBLY - nozzle injector

1шт.

10

1342829C1

GASKET

- nozzle; Replaces A76640

1шт.

When nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
