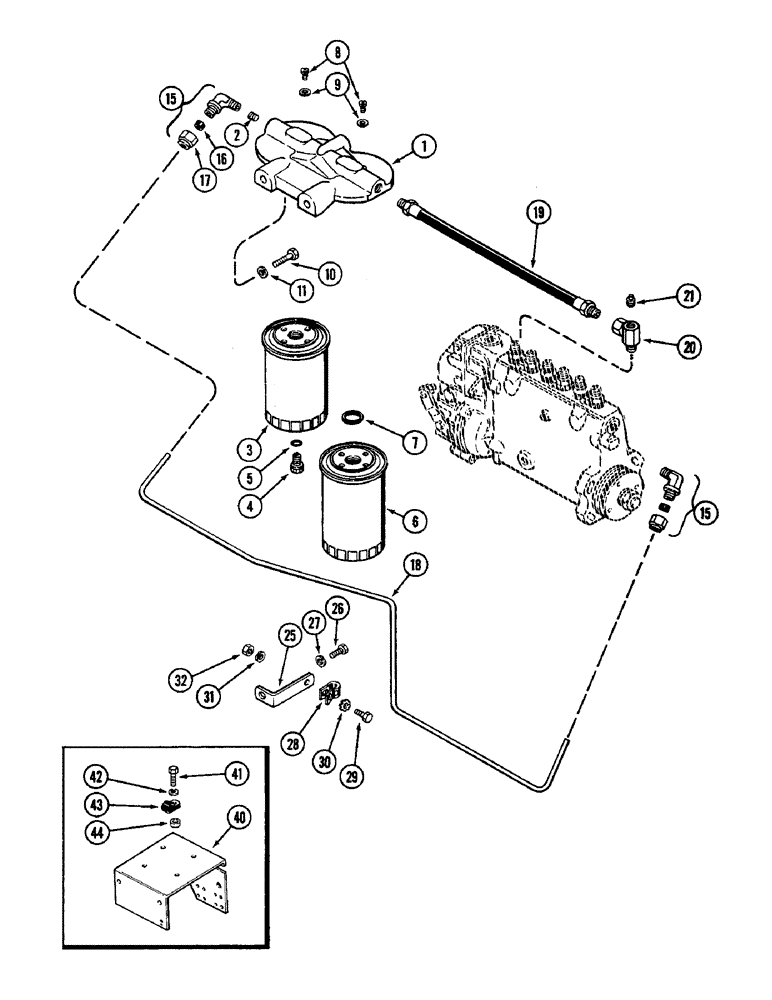

Запчасти Case IH 3294 (3-050) - FUEL INJECTION FILTER SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - first and second stage filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8 inch PT

1шт.

A44068

FUEL FILTER

ELEMENT KIT - filters, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER - first stage (Reference no. A58712), Includes: Ref. 4 and 5

1шт.

4

G49080

PLUG

- 10 point head, plastic, 3/8 inch NC

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - second stage (Reference no. A77220), Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - second stage filter (Order A44068) (Reference no. A42315)

1шт.

Whenever filter is removed, gasket must also be removed and replaced with a new gasket.

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degree, 5/16 tube 9/16-24 thread x 1/4 inch PT, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

- for 3/8 inch (10 mm) tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 3/8 inch (10 MM) tube

1шт.

18

A157329

TUBE

- transfer pump to first stage filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump, 15-3/8 inch (391 MM) long

1шт.

20

A20539

FITTING

UNION - switch, injection pump

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, 1/8 inch PT

1шт.

40

REF

INSTRUCTION

SUPPORT - (See Figure 3-058)

1шт.

41

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - tube

1шт.

44

A59660

SPACER

- clip

1шт.
