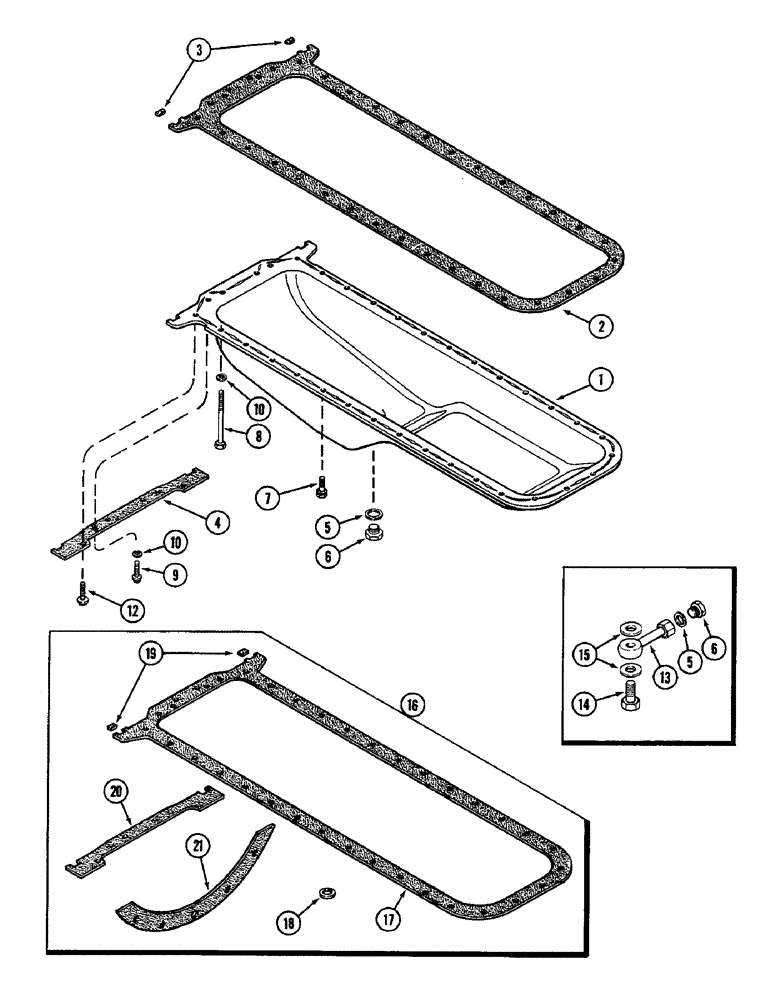

Запчасти Case IH 3294 (2-042) - OIL PAN, 504BDT DIESEL ENGINE (02) - ENGINE

1

A166236

PAN

- oil (Replaces A148753)

1шт.

2

REF

INSTRUCTION

GASKET - pan to block (See ref 16)

1шт.

3

REF

INSTRUCTION

GASKET - corner (See ref 16)

2шт.

4

REF

INSTRUCTION

GASKET - flywheel housing seal plate (See ref 16)

1шт.

5

REF

INSTRUCTION

GASKET - drain plug (See ref 16)

1шт.

6

A34826

PLUG,7/8" - 18 ORB

- drain

1шт.

7

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT ASSEMBLY - with lock washer, 3/8 x 7/8 inch

26шт.

8

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - hex, 3/8 NC x 5-1/2 inch

2шт.

9

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry, 3/8 NC x 1-1/4 inch

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

- hex Sems, 3/8 NC x 1-1/2 inch

2шт.

13

A164727

TUBE

- oil drain (If equipped)

1шт.

14

A164733

BOLT

- oil drain (If equipped)

1шт.

15

A27968

RING

- drain bolt (If equipped)

2шт.

16

A152479

GASKET KIT

KIT - gasket, oil pan (See footnote at Ref. 1, 25 and 45 in Figure 2-044), Includes: Ref. 17 - 21

1шт.

17

A150688

GASKET

-, Serial Range: pan-block

1шт.

18

A27968

RING

- drain plug

1шт.

A152424

GASKET

KIT - rear seal (Used when tractor is split and oil pan is not removed), Includes: Ref. 19 - 21

1шт.

19

A150690

OIL PAN GASKET SET

- corner (Order A152424)

2шт.

20

A150689

GASKET

- flywheel housing seal plate

1шт.

21

A57966

GASKET

- housing

1шт.
