Запчасти Case IH 3294 (2-040) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

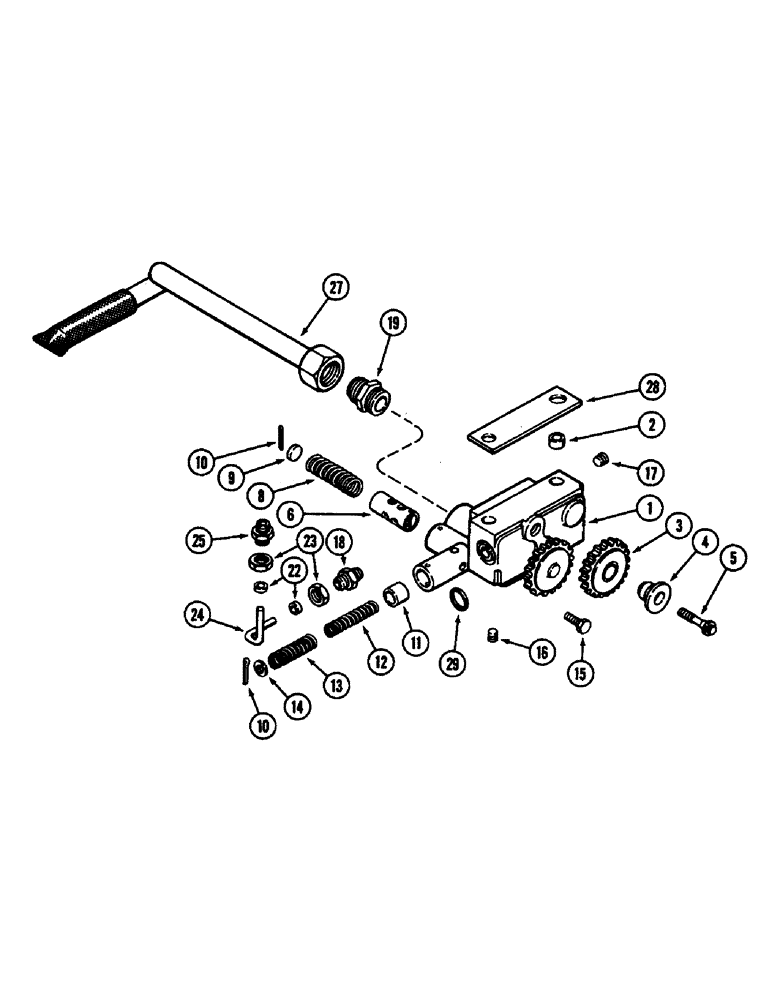

Схема запчастей Case IH 3294 - (2-040) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE
12
11
2
17
4
3
29
10
28
10
14
25
18
16
8
5
6
24
27
22
1
9
13
19
23
15

Артикул

Название

Примечание

Количество

1

A152998

PUMP

ASSEMBLY - oil, engine, Includes: Ref. 2 - 18

1шт.

2

A58915

SLEEVE

- oil pump body

1шт.

3

A63941

GEAR WHEEL

GEAR - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - idler gear to pump body

1шт.

6

A75286

VALVE

ASSEMBLY - oil pressure relief, includes spirol pin

1шт.

221-850

PLUG,Hex Soc, 1/16"-27

PIN - Spirol, 3/32 x 1 inch (3 x 25 MM) (Not shown)

1шт.

8

A63949

SPRING

- oil pump valve

1шт.

9

41-1016

PLUG,Cup, 1"

- cup, 1 inch (25 MM)

1шт.

10

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), (2 x 45 MM) 3/32" x 1 3/4"

2шт.

11

A76152

VALVE

- safety, pressure relief

1шт.

12

A76154

SPRING

- inner, 3-7/64 inch (79 MM) free length

1шт.

13

A76153

SPRING

- inner, 2-7/16 inch (62 MM) free length

1шт.

14

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

1шт.

15

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

- square socket head, 1/16 inch PT

3шт.

17

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8 inch PT

3шт.

18

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (In pump)

1шт.

19

A142004

CONNECTOR, ELEC

NUT - suction, Serial Range: tube-pump

1шт.

22

222-153

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch (6 MM) tube

2шт.

24

A75290

TUBE

- oil pump sensing

1шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (In block)

1шт.

27

A142449

TUBE

- oil suction, with screen

1шт.

28

A58859

SHIM,.005" Thk

Oil pump (0.127 mm) .005" Thk

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port

1шт.

Выбрано товаров: 26
