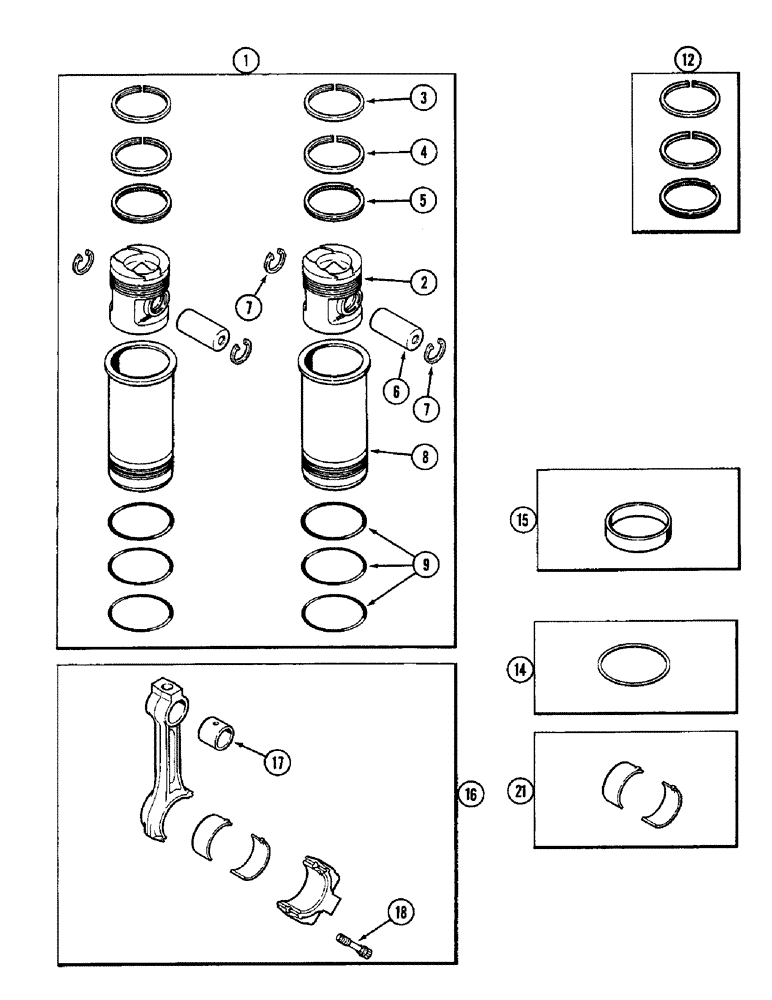

Запчасти Case IH 3294 (2-038) - PISTON AND SLEEVE ASSEMBLY, 504BDT DIESEL ENGINE (02) - ENGINE

1

A151067

PISTON

PISTON AND SLEEVE KIT - engine (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A152485

PISTON

PISTON - 4-5/8 inch (108 MM) bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order ref 12) (Reference no. A77235)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order ref 12) Reference no. A67223)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order ref 12) (Reference no. A76635)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN - piston (See ref 13)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin, see ref 13 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston (3 grooves)

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

6шт.

12

A44054

RING

RING KIT - replacement

6шт.

14

A148554

SHIM

SHIM - sleeve, 0.005 inch (0.127 MM)

1шт.

14

A148553

SHIM

SHIM - sleeve, 0.010 inch (0.254 MM)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

16

A65032

ROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap, connecting rods

2шт.

21

A41758

BEARING LINER

INSERT - rod bearing, standard (Set of 2), connecting rods

6шт.

21

A41899

BEARING LINER

INSERT - rod bearing, 0.002 inch (0.0508 MM) undersize (Set of 2), connecting rods

6шт.

21

A41900

BEARING LINER

INSERT - rod bearing, 0.012 inch (0.254 MM) undersize (Set of 2), connecting rods

6шт.

21

A41901

BEARING LINER

INSERT - rod bearing, 0.020 inch (0.508 MM) undersize (Set of 2), connecting rods

6шт.

21

A41902

BEARING LINER

INSERT - rod bearing, 0.030 inch (0.762 MM) undersize (Set of 2), connecting rods

6шт.
