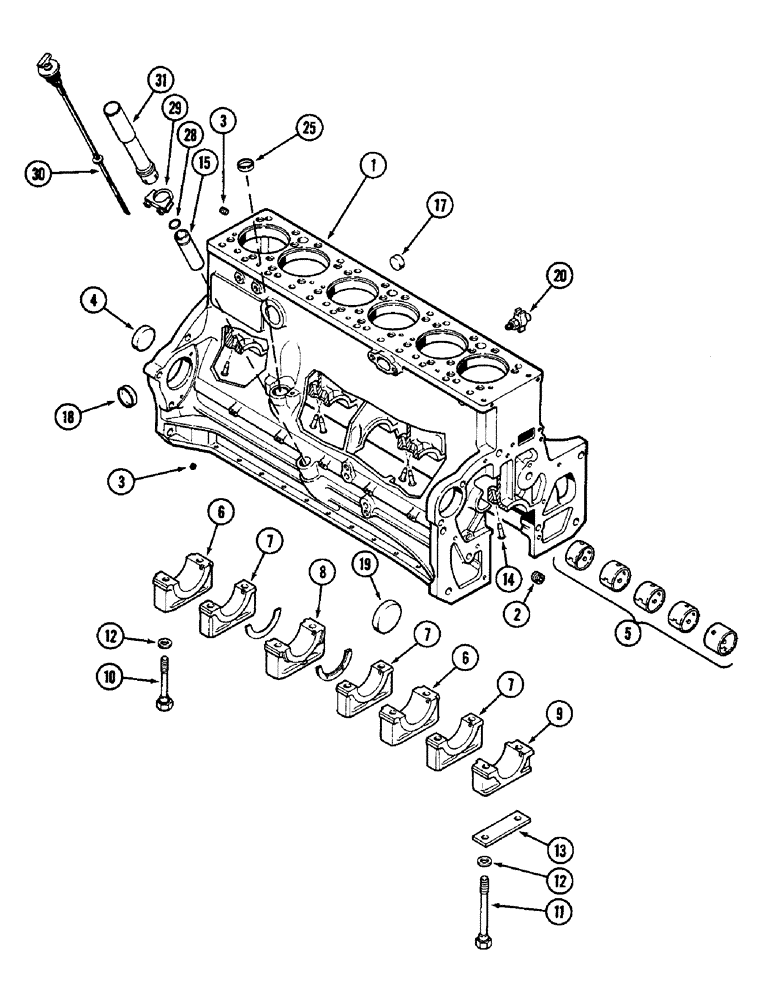

Запчасти Case IH 3294 (2-034) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A166293
SKELETON ENGINE
BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters) (Replaces A166095), Includes: Ref. 1 - 20
1шт.
1
A166292
CRANKCASE
BLOCK ASSEMBLY - stripped (Casting no. A66527), Includes: Ref. 2 - 20
1шт.
AR77826
REMAN-BASIC ENGINE
Remanufactured, For N.A. Only
1шт.
AR77826
REMAN-BASIC ENGINE
Remanufactured, For N.A. Only
1шт.
2
221-843
PLUG,Hex Soc, 3/8"-18
PLUG - hex socket head, 3/8 inch PT
4шт.
3
221-1849
PLUG
PLUG - hex socket head, 1/8 inch PT
6шт.
4
A24361
PLUG
PLUG - camshaft hole, cup, 2-3/8 inch (60 MM)
1шт.
5
REF
INSTRUCTION
BUSHING - camshaft (See Figure 2-032)
1шт.
6
A154398
BEARING CAP
CAP - main bearing, wide
2шт.
7
A154397
BEARING CAP
CAP - main bearing, narrow
3шт.
8
A154395
CAP
CAP - main bearing, thrust
1шт.
9
A154396
BEARING CAP
CAP - main bearing, front
1шт.
10
A66948
STEP BOLT
BOLT - hex special, 4-15/16 inch
12шт.
11
A66949
STEP BOLT
BOLT - hex special, 7-3/16 inch
2шт.
12
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - special, hardened
14шт.
13
A58859
SHIM,.005" Thk
SHIM, , Oil pump to brg. cap (0.14 mm) .005" Thk
1шт.
14
A63903
NOZZLE CAP
NOZZLE - piston oil cooling
6шт.
15
A34540
TUBE
TUBE - oil filler and dipstick
1шт.
17
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - left side and rear, cup, 1-3/8 inch (35 MM)
3шт.
18
A58569
PLUG,Cup, 2", Stainless
PLUG - right side heater hole, cup, 2 inch (51 MM)
1шт.
19
41-1052
PLUG,Cup, 3 1/4"
PLUG - cup, 3-1/4 inch (83 MM)
1шт.
20
A23656
COCK, DRAIN
VALVE - drain, water
1шт.
25
41-1022
PLUG,Cup, 1 3/8"
PLUG - tachometer
1шт.
28
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
O-RING - tube seal
1шт.
29
L47766
CLAMP
CLAMP - tube
1шт.
30
A154767
DIPSTICK
DIPSTICK - oil level, large mouth
1шт.
31
A153835
TUBE
TUBE - extension, large mouth
1шт.
Выбрано товаров: 27
