Запчасти Case IH 3294 (2-032) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

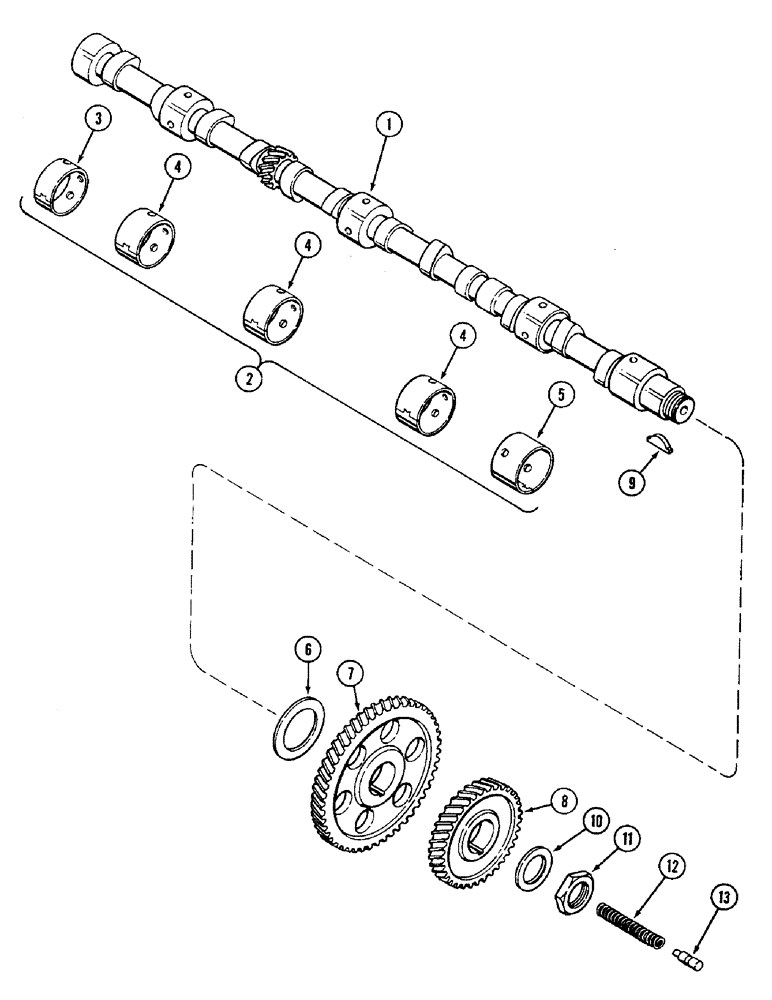

Схема запчастей Case IH 3294 - (2-032) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE
4
11
13
6
10
9
12
8
4
3
7
4
5
1
2

Артикул

Название

Примечание

Количество

1

A66124

CAMSHAFT

- engine

1шт.

2

A23544

BUSHING

KIT - camshaft (Order components), Includes: Ref. 3 - 5

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- camshaft, rear, 1-5/32 inch (29 MM) wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, intermediate, 1-7/16 inch (37 MM) wide

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft, front, 1-21/32 inch (42 MM) wide

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16 inch

1шт.

10

A31038

THRUST WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft

1шт.

12

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust camshaft

1шт.

Выбрано товаров: 13
