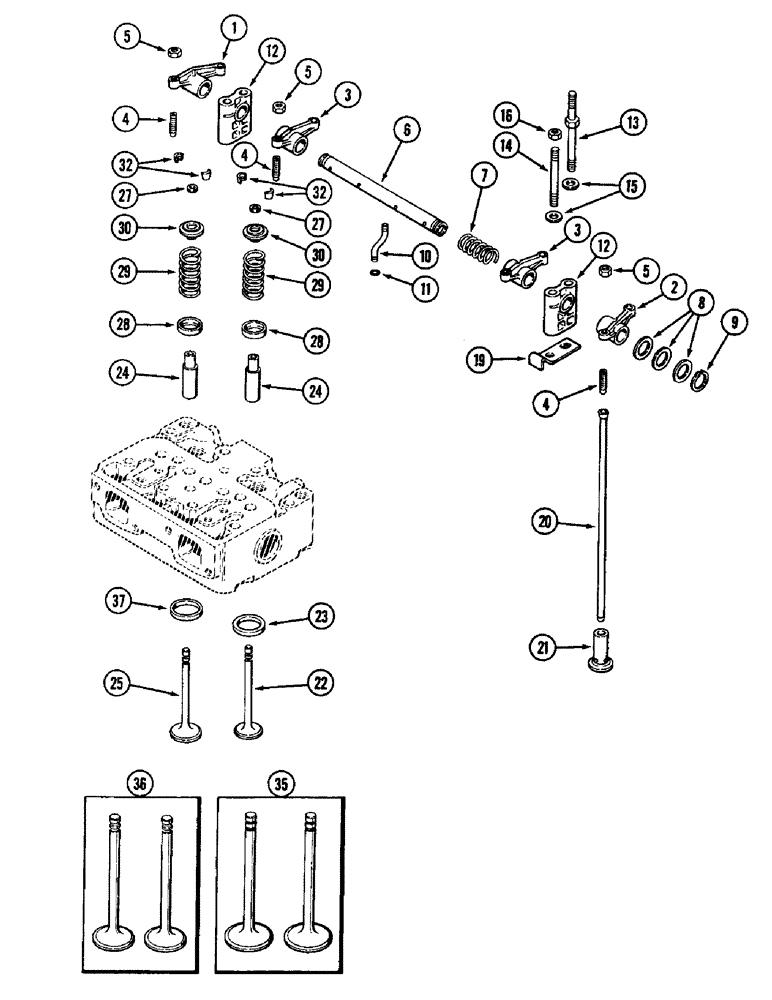

Запчасти Case IH 3294 (2-030) - VALVE MECHANISM, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A148137
ROCKER ARM
ARM ASSEMBLY - rocker, exhaust valve (first, third and fifth cylinders) (Includes: Ref. 4 and 5)
3шт.
2
A148138
ARM
ASSEMBLY - rocker, exhaust valve (Second, fourth and sixth cylinders) (Includes: Ref. 4 and 5)
3шт.
3
A148136
ARM
ASSEMBLY - rocker, intake valve, Includes: Ref. 4 and 5
6шт.
4
A21105
ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"
SCREW - rocker arm
1шт.
5
25-116
NUT,Hex, 3/8"-24, G5
- hex 3/8 inch NF
1шт.
6
A150545
SHAFT
- rocker arm
3шт.
7
A27877
SPRING
- rocker arm shaft
3шт.
8
A27878
WASHER
- rocker arm shaft
1шт.
9
B18206
SNAP RING,#87, Ext
Ring, Snap, , rocker arm shaft #87, Ext
6шт.
10
A58657
TUBE
- oil rocker arm shaft
3шт.
11
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- oil tube
3шт.
12
A61128
BRACKET
- rocker arm shaft
6шт.
13
A67121
STUD
- rocker arm bracket, special, 6-1/16 inch
6шт.
14
A58659
STUD
- 7/16 NC x 4-5/16 inch
6шт.
15
195-29
WASHER,7/16"
- flat, 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 MM)
12шт.
16
25-107
NUT,7/16"-14, G5
- hex, 7/16 inch NC
6шт.
19
A157197
STRAP
- rocker arm bracket
6шт.
20
A157328
ROD
- push
12шт.
21
A20865
TAPPET
LIFTER - push rod
12шт.
21
A21857
TAPPET
LIFTER - push rod, 0.010 inch (0.25 MM) oversize
12шт.
22
NSS
NOT SOLD SEPARAT
VALVE - exhaust (Order ref 35)
6шт.
23
REF
INSTRUCTION
INSERT - exhaust valve (See Figure 2-028)
6шт.
24
A41783
GUIDE
- intake and exhaust valves (Set of 2)
12шт.
25
NSS
NOT SOLD SEPARAT
VALVE - intake (Order ref 36)
6шт.
27
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
- valve stem
12шт.
28
A66328
SEAT
- intake and exhaust valve springs
12шт.
29
A66444
SPRING
- intake and exhaust valves
12шт.
30
A66336
ROTATOR
- intake and exhaust valves
12шт.
32
A27872
LOCK
- valve spring
24шт.
35
A41753
VALVE
KIT - exhaust (Set of 2)
3шт.
36
A44575
VALVE
KIT - intake (Set of 2)
3шт.
37
REF
INSTRUCTION
INSERT - intake valve (See Figure 2-028)
6шт.
Выбрано товаров: 32
