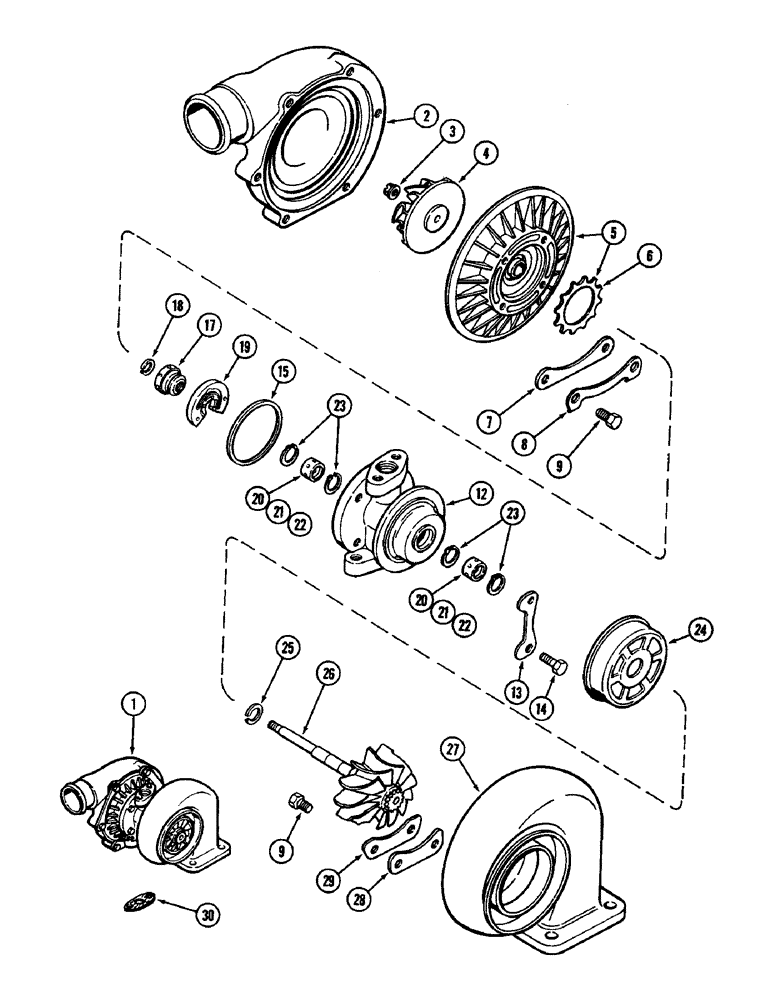

Запчасти Case IH 3294 (2-020) - TURBOCHARGER ASSEMBLY, 504BDT DIESEL ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ASSEMBLY - new, Includes: Ref. 2 - 29

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Assembly Remanufactured

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, use this part no. to return turbocharger core for credit

1шт.

2

A45096

HOUSING

- compressor

1шт.

3

A48398

NUT

- lock, compressor

1шт.

4

A45016

IMPELLER

- turbocharger

1шт.

5

A45095

PLATE

ASSEMBLY - back, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44838

CLAMP

- compressor housing

3шт.

8

A44839

PLATE

- lock, compressor housing clamp

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

12шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

- lock, center housing to back plate

1шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

A44833

RING

- seal, back plate to center housing

1шт.

17

A156846

COLLAR

- thrust, compressor

1шт.

18

A44828

RING

- piston, compressor, 1/2 inch (13 MM) OD

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

- journal, center (Standard) (See A45344 kit)

2шт.

21

A44849

BUSHING

BEARING - journal, center, 0.005 inch (0.13 MM) undersize (See A45345 kit)

2шт.

22

A44850

BUSHING

BEARING - journal, center, 0.010 inch (0.25 MM) undersize (See A45346 kit)

1шт.

23

A44827

RING

- snap, journal bearing

4шт.

24

A45091

GUARD

SHROUD - center housing side wheel

1шт.

25

A44829

RING

- piston, turbine housing

1шт.

26

A48397

SHAFT

WHEEL - turbocharger shaft

1шт.

27

A44840

HOUSING

- turbocharger

1шт.

28

A44823

CLAMP

- turbocharger to turbine housing

3шт.

29

A44824

PLATE

- lock, turbocharger to turbine housing

3шт.

30

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

A45344

KIT

- repair, center bearing (Standard) (Includes refs 15, 18, 19, 20, 23, 25 and 30)

1шт.

A45345

KIT

- repair, center bearing 0.005 inch undersize (0.13 MM) (Includes refs 15, 18, 19, 21, 23, 25 and 30)

1шт.

A45346

KIT

- repair, center bearing, 0.010 inch undersize (0.25 MM) (Includes refs 15, 18, 19, 22, 23, 25 and 30)

1шт.
