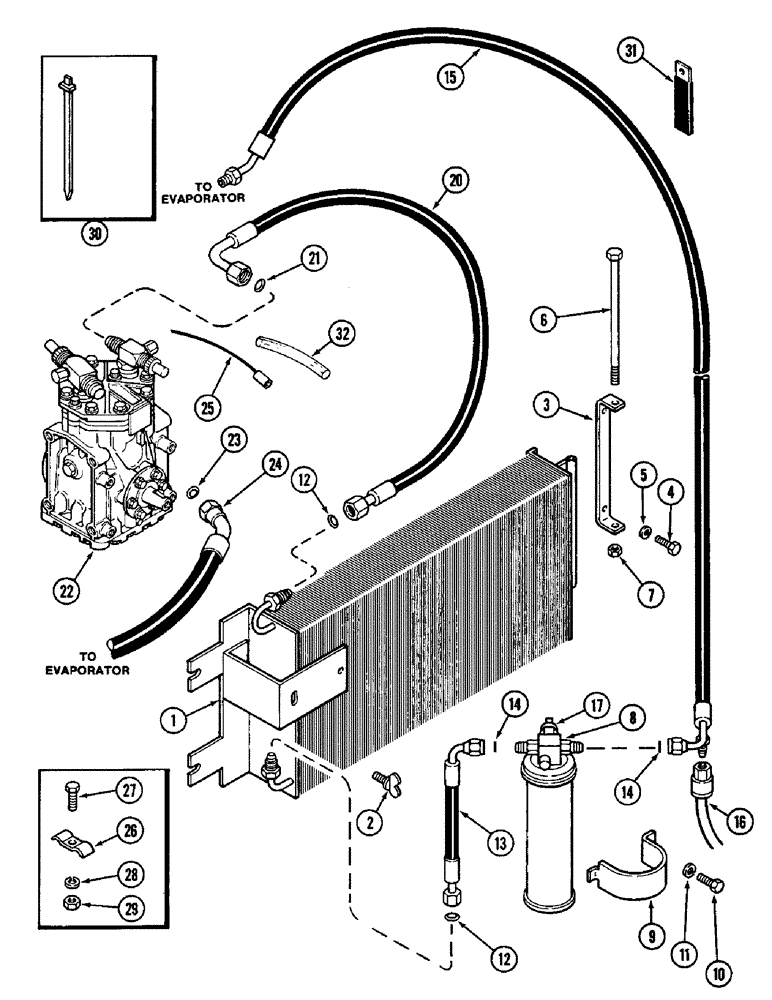

Запчасти Case IH 3294 (9-486) - AIR CONDITIONING, CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A145695
COIL
- condenser
1шт.
2
A141485
THUMB SCREW,5/16" - 18 x 5/8"
- thumb, 5/16 x 5/8 inch
2шт.
3
A141489
SUPPORT
BRACKET - condenser pivot
1шт.
4
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
2шт.
5
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
6
117-2
SQUARE BOLT,1/4" - 20 x 8 1/2", Gr 2
- square head, 1/4 NC x 8-1/2 inch (Grade 2)
1шт.
7
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
1шт.
8
A76312
RECEIVER-DRYER
RECEIVER-DRIER - (Includes Ref 17)
1шт.
9
A61193
CLAMP
-, Serial Range: drier-coil
1шт.
10
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
11
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
12
A62229
GASKET
- copper (Order A42920)
2шт.
13
A145697
TUBE
-, Serial Range: condenser-receiver-drier
1шт.
14
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk - Condenser tube
2шт.
15
A145698
HOSE
-, Serial Range: cab-receiver-drier
1шт.
16
A65779
SWITCH
- high pressure cut out
1шт.
17
A47717
SWITCH
- low pressure
1шт.
20
A145696
HOSE
-, Serial Range: condenser-compressor
1шт.
21
A62227
GASKET
- copper, 1/2 inch tube x 45 degree flare (Order A42921)
1шт.
22
A145699
VALVE
- rotolock, discharge
1шт.
23
222-995
SEALING WASHER,15.88mm ID
- copper, 5/8 inch tube x 45 degree flare
1шт.
24
F64305
HOSE
-, Serial Range: cab-compressor
1шт.
25
A61755
ELECTRICAL WIRE
WIRE - high pressure switch to clutch, 36 inch (914 MM)
1шт.
26
A63323
CLAMP
- hose
1шт.
27
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
1шт.
28
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
29
425-145
JAM NUT,Jam, 5/16"-18, G5
1шт.
30
A160890
STRAP
- nylon (Order R38237)
2шт.
31
A149624
CLIP
-, Serial Range: hoses-manifold
3шт.
32
A62053
HARNESS
LOOM - clutch wire (Order A59680, cut to desired length)
1шт.
Выбрано товаров: 30
