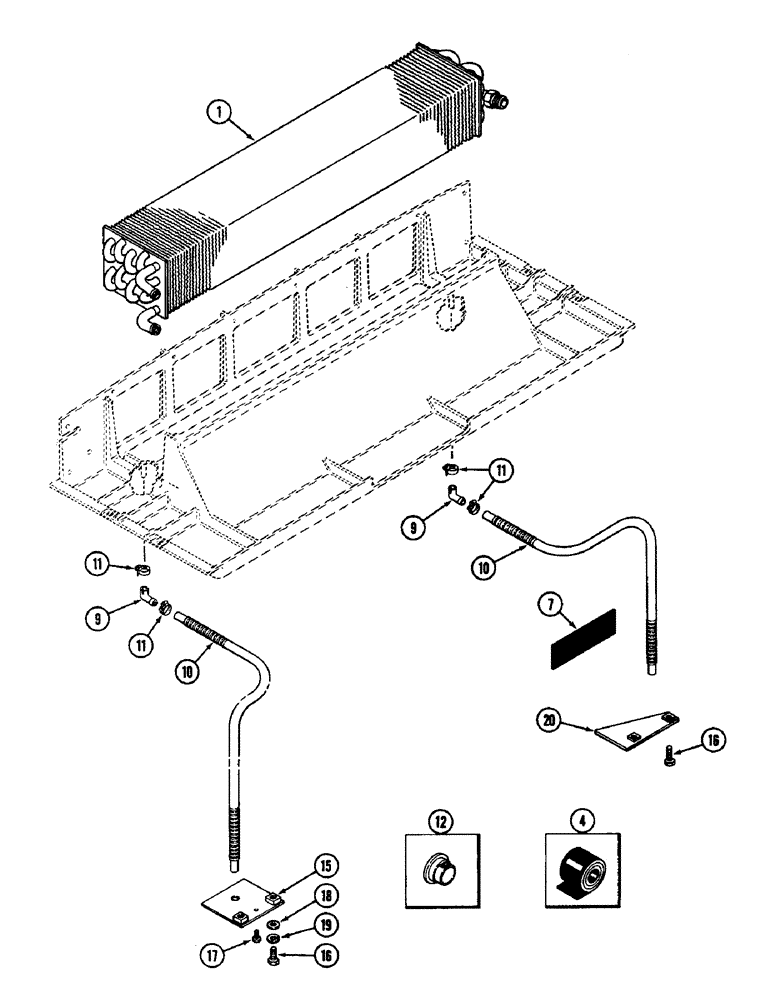

Запчасти Case IH 3294 (9-474) - CAB, AIR CONDITIONING EVAPORATION DRAIN, CAB S/N 12107380 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CORE - air conditioning and heater (See Figure 9-470)

1шт.

4

345-37

TAPE

- cork, core insulator, 2-1/2 x 12 x 1/8 inch (64 x 305 x 3 MM) (Order A42902, cut to desired length)

3шт.

7

345-38

TAPE - duct

1шт.

9

F66183

ELBOW

- 90 degree, drain hose

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, corrugated, 90 inch (2286 MM) long (Order F64508) (Reference No. F64505)

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- corrugated 0.43" ID x 100' Bulk

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

7/16 to 9/16 inch

4шт.

12

F64504

BUSHING

- post, hose (If equipped)

2шт.

15

F98277

PLATE ASSY.

PLATE - support, hose

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - Phillips head, No. 12 x 1/2 inch

2шт.

18

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

F97423

PLATE

- support hose

1шт.
