Запчасти Case IH 3294 (9-472) - CAB, AIR CONDITIONING EVAPORATION DRAIN, PRIOR TO CAB S/N 12107380 (09) - CHASSIS/ATTACHMENTS

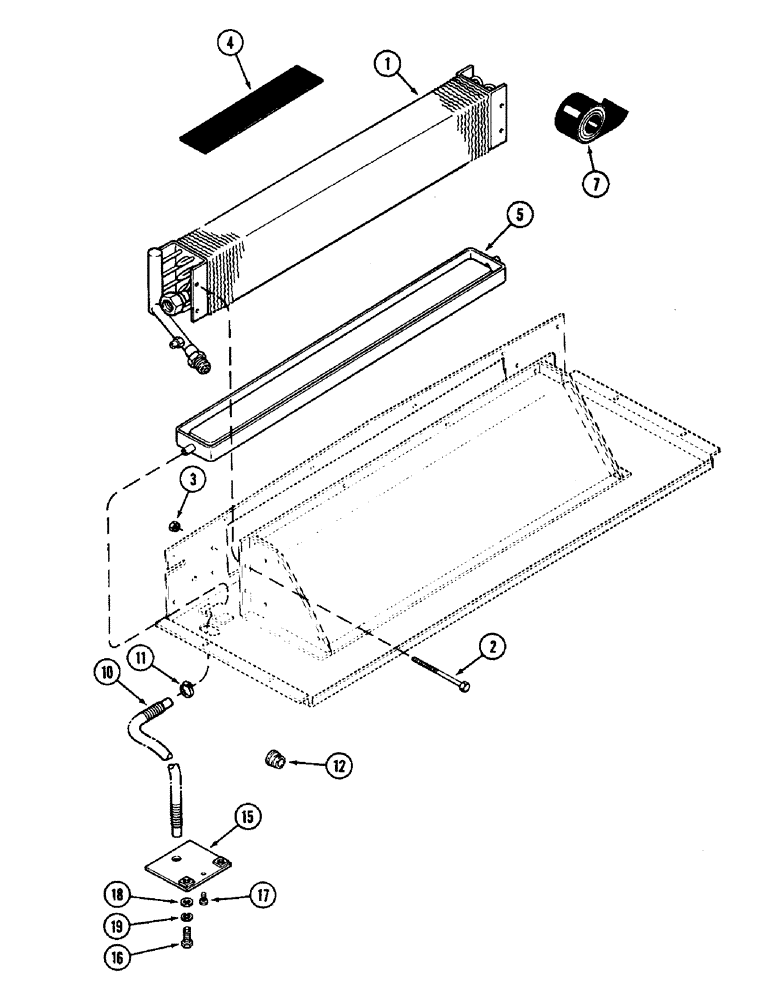

Схема запчастей Case IH 3294 - (9-472) - CAB, AIR CONDITIONING EVAPORATION DRAIN, PRIOR TO CAB S/N 12107380 (09) - CHASSIS/ATTACHMENTS
5
16
3
10
18
17
7
1
2
19
15
11
4
12

Артикул

Название

Примечание

Количество

1

F63870

EVAPORATOR

- evaporator

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

4

345-37

TAPE

- cork, core insulator, 2-1/2 x 12 x 1/8 inch (64 x 305 x 3 MM) (Order A42902)

3шт.

5

F64487

PAN

- condensation

1шт.

7

A42902

SEALING STRIP

INSULATION - press on 2-1/2 inch (64 MM) wide 30 feet (9 M) long

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, corrugated, 90 inch (2286 MM) long (Order F64508) (Reference No. F64505)

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- corrugated 0.43" ID x 100' Bulk

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

7/16 to 9/16 inch

2шт.

12

F64504

BUSHING

-, Serial Range: hose-post

2шт.

15

F98277

PLATE ASSY.

PLATE - hose support

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - Phillips head, No. 12 x 1/2 inch

2шт.

18

195-526

WASHER,7/16" x 7/8" x .083"

- flat, 7/16 x 7/8 x 3/32 inch (11 x 22 x 2 MM)

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 15
