Запчасти Case IH 3294 (9-462) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

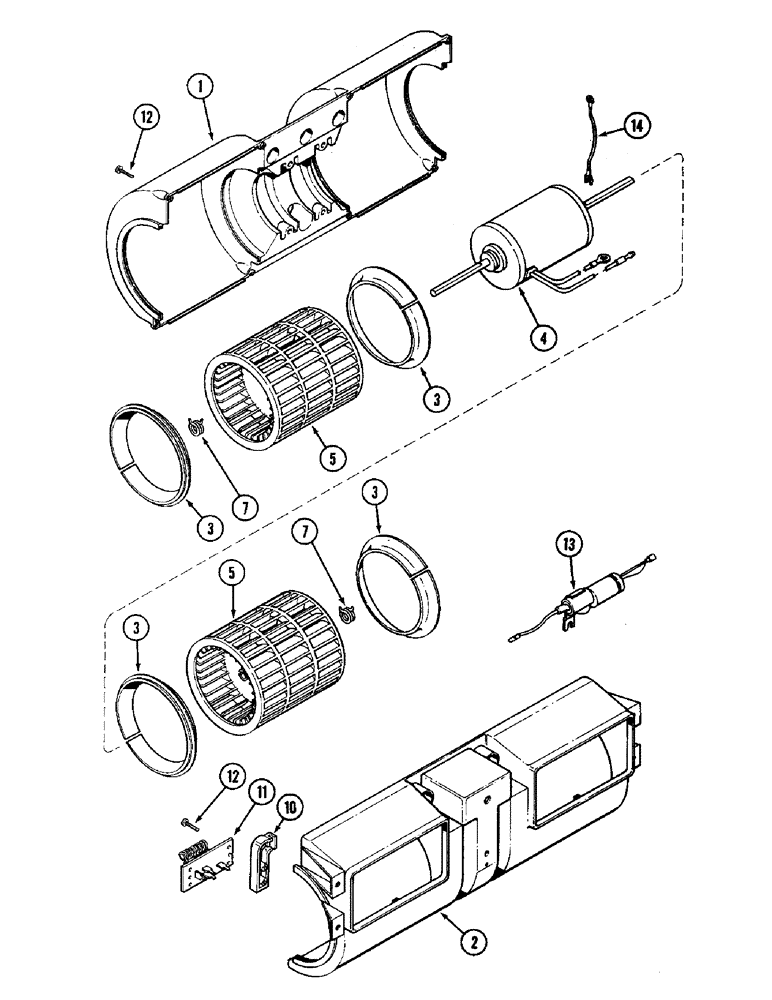

Схема запчастей Case IH 3294 - (9-462) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS
4
3
10
7
3
5
3
12
11
5
7
2
13
3
12
14
1

Артикул

Название

Примечание

Количество

1

F64741

HOUSING

- blower fan, lower

1шт.

2

F64740

HOUSING

- blower fan, upper

1шт.

3

F64739

RING

- blower housing

4шт.

4

F42775

MOTOR, ELECTRIC

MOTOR - blower (Order F96901)

1шт.

5

F64935

BLOWER,Fan

FAN - blower, 4-1/2 inch diameter x 5 inch wide (114 x 127 MM) (Replaces F45020 and F45021)

2шт.

7

F44948

SPRING

- fan lock

2шт.

10

F64204

BRACKET

- resistor mounting (Replaces F64742)

1шт.

11

F44900

RESISTOR

- blower

1шт.

12

187-1111

SCREW

- No. 8-32 x 3/4 inch

14шт.

13

F64184

CAPACITOR

- radio noise

1шт.

14

A180121

ELECTRICAL WIRE

WIRE - ground

1шт.

Выбрано товаров: 11
