Запчасти Case IH 3294 (9-450) - CAB, GLASS (09) - CHASSIS/ATTACHMENTS

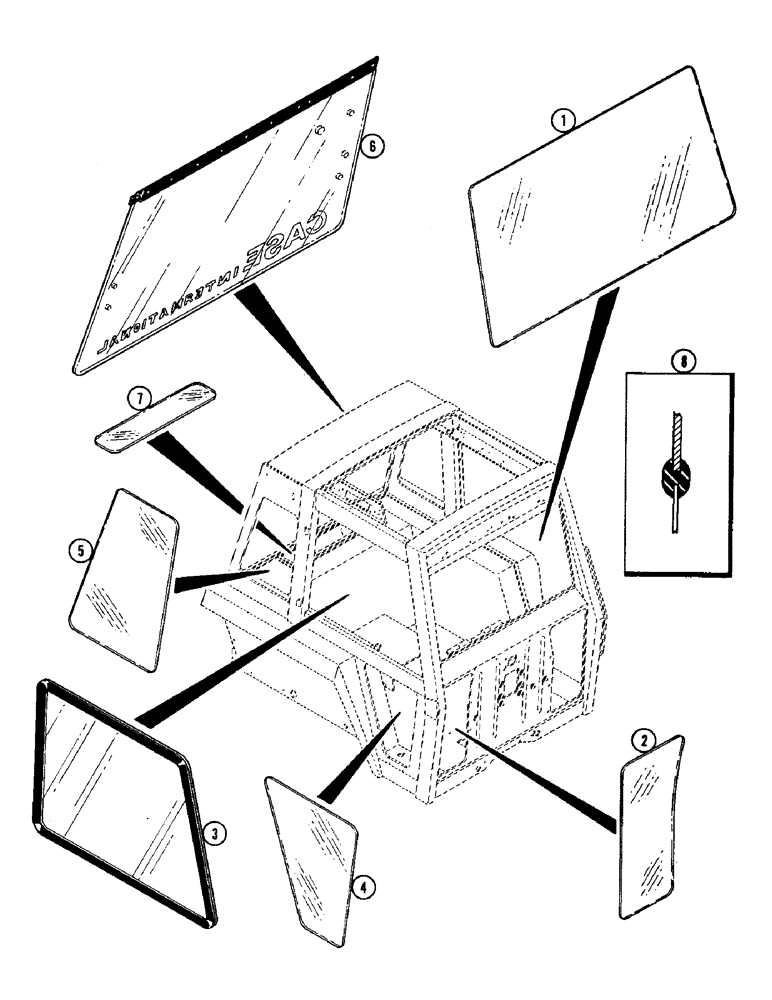

Схема запчастей Case IH 3294 - (9-450) - CAB, GLASS (09) - CHASSIS/ATTACHMENTS
2
3
5
8
7
4
1
6

Артикул

Название

Примечание

Количество

1

F64934

GLASS

- windshield

1шт.

2

F63838

GLASS

- front lower

2шт.

3

F63307

GLASS

- right window and door, upper (34-1/2 inch long)

2шт.

3

F64914

GLASS - right window (36-17/64 inch long) (Order F97381)

1шт.

4

F63794

GLASS

- right window and door, lower

2шт.

5

F64076

GLASS

- rear sides

2шт.

6

F98367

GLASS

- rear window (Includes hinge) Case

1шт.

6

F98363

WINDOW

GLASS - window, rear (Includes hinge) (Case IH)

1шт.

7

F64114

GLASS

- rear horizontal

1шт.

8

A42677

MOLDING

SEAL - glass, 50 feet roll

1шт.

Выбрано товаров: 10
