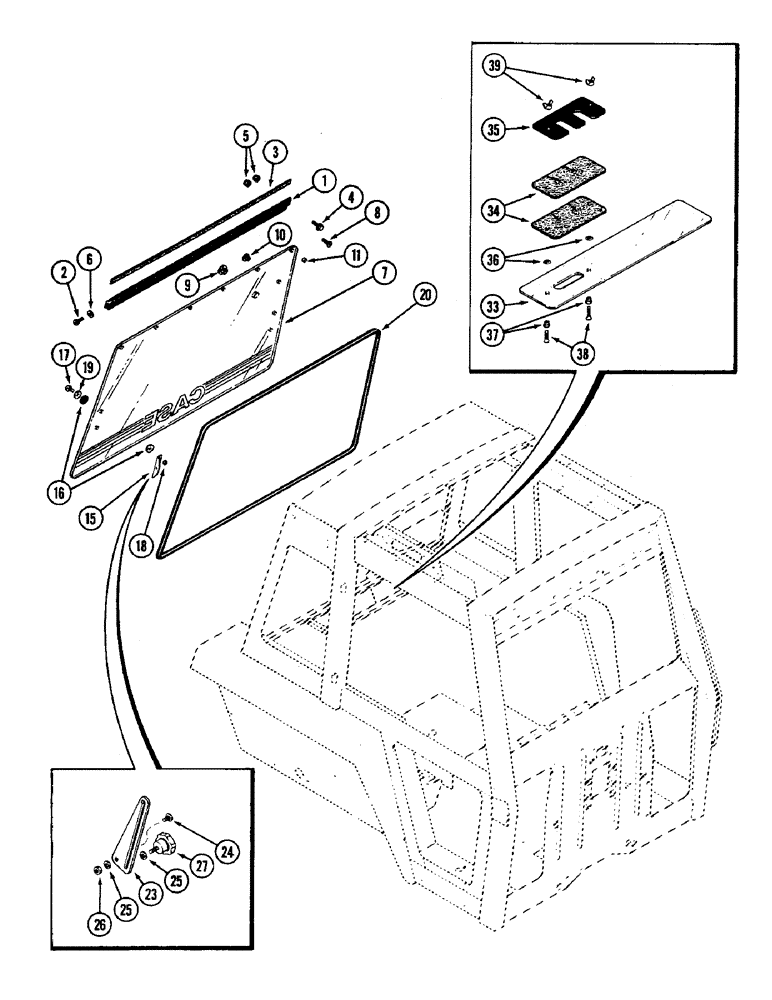

Запчасти Case IH 3294 (9-446) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F66132

HINGE

ASSEMBLY - cab (Replaces F64640)

1шт.

2

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - slotted hex, No. 10-32 x 3/4 inch

8шт.

3

NSS

NOT SOLD SEPARAT

SEAL - hinge (Reference No. A42675)

1шт.

F64119

SEALING STRIP

SEAL - foam, 100 feet (33 M)

1шт.

4

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- black, No. 10-24 (Cut to desired length)

1шт.

5

F45165

SPECIAL NUT,#10-24

NUT - hex special, black, No. 10-24

2шт.

6

195-513

WASHER,#10

- flat, 7/32 x 7/16 x 1/16 inch (6 x 11 x 2 MM)

4шт.

7

REF

INSTRUCTION

GLASS - window (See Figure 9-450)

1шт.

8

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- oval head, No. 10-24 x 3/8 inch

9шт.

9

F64838

PLUG

- rear window, 13/32 inch diameter (10 MM) (Order F66090)

1шт.

10

F66065

PLUG

- rear window, 3/8 inch diameter (9 MM) (Order F66089)

1шт.

11

F66023

SPACER

- hinge to glass (Replaces F64136)

1шт.

15

F64138

BRACKET

- regulator arm (Replaces F66004)

2шт.

16

F45315

WASHER

- bracket spacer

8шт.

17

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch

4шт.

18

F45165

SPECIAL NUT,#10-24

NUT - hex, special, No. 10-24

4шт.

19

195-2208

WASHER,.266" x 13/16" x .079"

- screw spacer

4шт.

20

F64677

SEAL

SEAL - window (Order F64499 and, Serial Range: cut-length)

1шт.

23

F64779

REGULATOR

ARM - regulator, window opening

2шт.

24

111-132

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch (Grade 2)

2шт.

25

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

2шт.

26

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

27

F64253

KNOB

- regulator

2шт.

A163882

WINDOW KIT - lower rear (Machinery item), Includes: Ref. 33 - 39

1шт.

33

A163883

WINDOW

- lower rear

1шт.

34

A165354

SEAL

- lower rear window

2шт.

35

A165352

PLATE

- lower rear window

1шт.

36

A165523

FASTENER

-, Serial Range: spacer-window

2шт.

37

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- window

2шт.

38

179-159

SCREW,Cross Oval Hd, #10 - 24 x 1"

- Phillips head, No. 10-24 x 1 inch

2шт.

39

129-500

WING NUT,#10-32

NUT - wing, No. 10-24

2шт.
