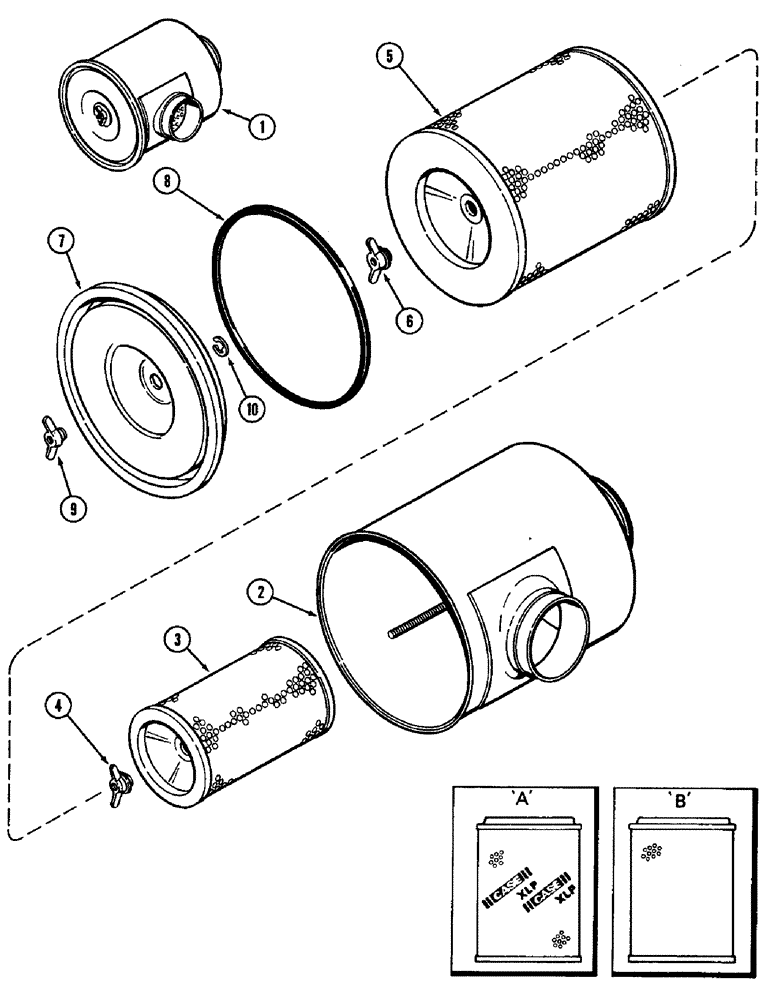

Запчасти Case IH 3294 (2-012) - AIR CLEANER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A147020

CLEANER

ASSEMBLY - air, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Reference no. A47144)

1шт.

3

A47146

AIR FILTER

ELEMENT - inner

1шт.

4

F91761

WING NUT

- element retainer (Order D78354)

1шт.

5

A47145

AIR FILTER

ELEMENT - outer (See inset A)

1шт.

5

A171842

ELEMENT

- outer (See inset B)

1шт.

6

A47143

NUT

- element retainer

1шт.

7

A47142

COVER

ASSEMBLY - cleaner, Includes: Ref. 8 - 10

1шт.

8

A47103

GASKET

- cover

1шт.

9

A47102

WING NUT

- cover retainer

1шт.

10

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, , nut #87, .668" Dia, E-Type

1шт.
