Запчасти Case IH 3294 (9-442) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

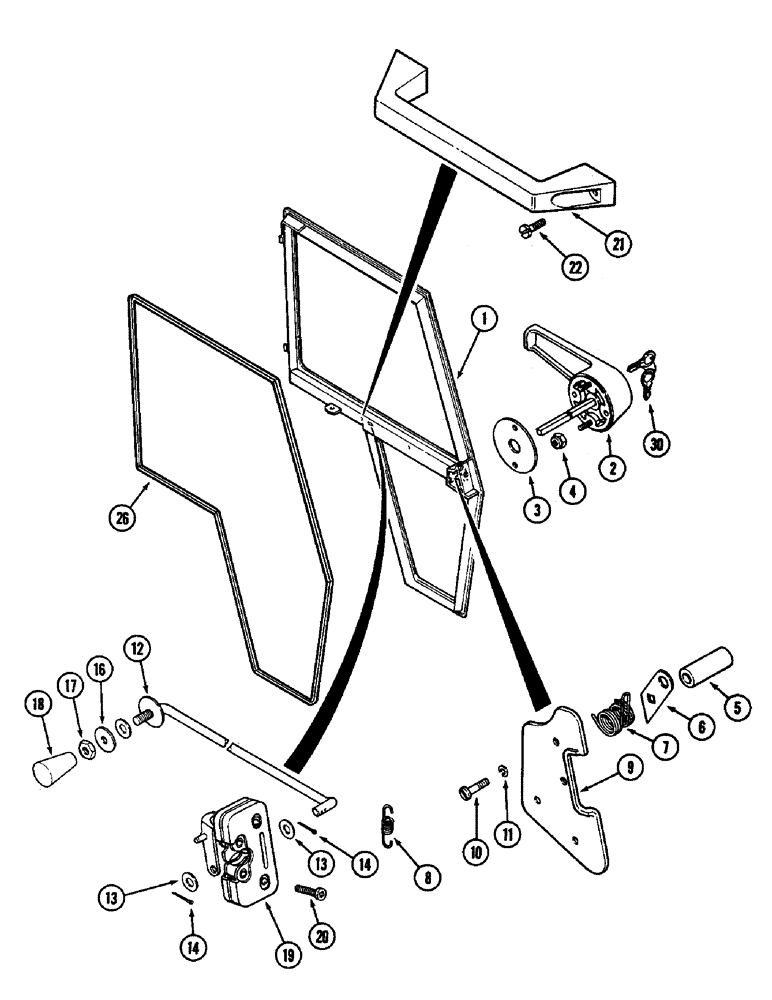

Схема запчастей Case IH 3294 - (9-442) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS
17
2
21
9
1
20
13
6
26
22
14
5
14
4
10
8
19
18
12
13
30
16
11
7
3

Артикул

Название

Примечание

Количество

F97271

DOOR SEAL

DOOR ASSEMBLY - complete (Includes glass) (Order F97066), Includes: Ref. 1 - 26

1шт.

Order glass and moulding from Figure 9-450

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Order F97066)

1шт.

2

F66158

HANDLE - outer (Order F66157)

1шт.

3

F64342

GASKET,1.6mm Thk

- handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- latch shaft

1шт.

6

F64371

ARM

- latch

1шт.

7

F64338

SPRING

- latch handle

1шт.

8

F45162

SPRING

- latch, door

1шт.

9

F66086

COVER ASSY

COVER - latch, door

1шт.

10

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- special, 1/4 NC x 1/2 inch

4шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, special, 1/4 inch

4шт.

12

F98226

ROD

- latch pull

1шт.

13

F64384

WASHER

- flat

2шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

F64340

WASHER

- shoulder

1шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

NUT - lock, jam special

1шт.

18

F64341

KNOB

- latch rod

1шт.

19

F66155

LATCH

- door rotary (Replaces F64296)

1шт.

20

F45337

SCREW,1/4" - 20 x 1", Gr 5

- special

4шт.

21

F64547

HANDLE

- door, inner

1шт.

22

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, 1/4 x 3/4 inch

2шт.

26

F64880

STRIP

- weather, door frame (Order F64773 and, Serial Range: cut-length)

1шт.

30

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used as ignition key)

1шт.

Выбрано товаров: 25
