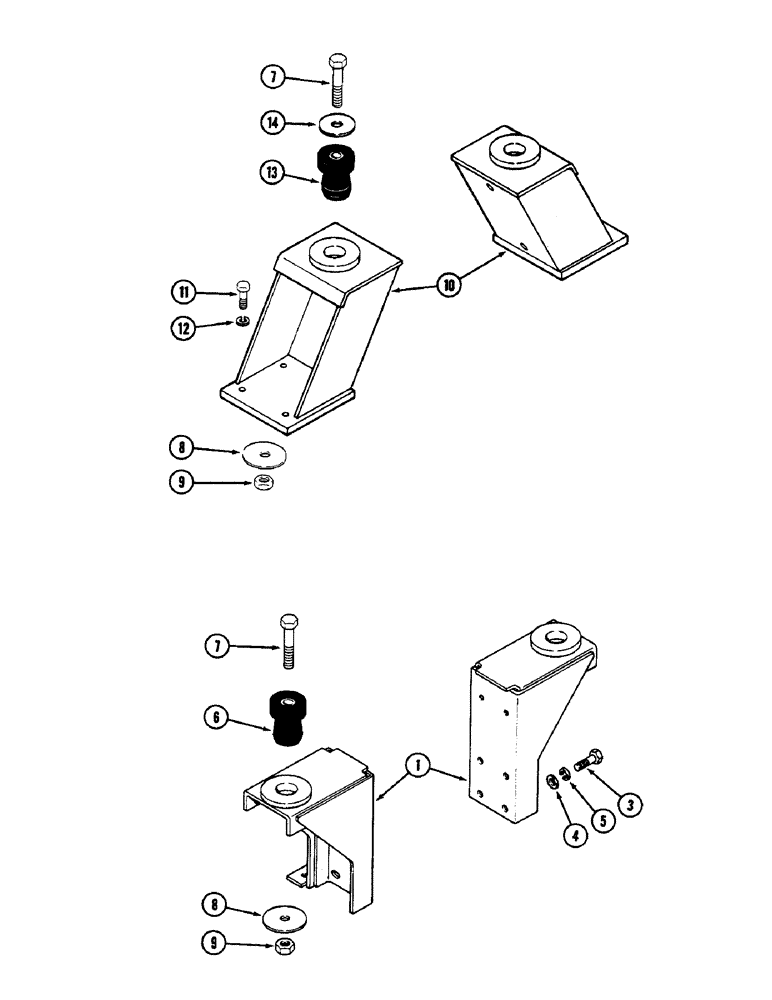

Запчасти Case IH 3294 (9-430) - CAB, 4 POST PROTECTIVE FRAME OR PLATFORM, FRONT AND REAR MOUNTS (09) - CHASSIS/ATTACHMENTS

1

A147255

BRACKET

- cab mounting

2шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

4

L30674

WASHER

- mounting bolt

8шт.

5

92-8

LOCK WASHER,1/2"

8шт.

6

A141452

SHOCK ABSORBER

MOUNT - cab front, rubber, black

2шт.

7

113-2648

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/4 inch (Grade 8)

4шт.

8

A141470

WASHER

- cab mount snubbing

4шт.

9

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

4шт.

10

A149667

MOUNTING PARTS

MOUNT - cab rear

2шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

A141451

SHOCK ABSORBER

MOUNT - cab rear, rubber, red

2шт.

14

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch (17 x 44 x 4 MM)

2шт.
