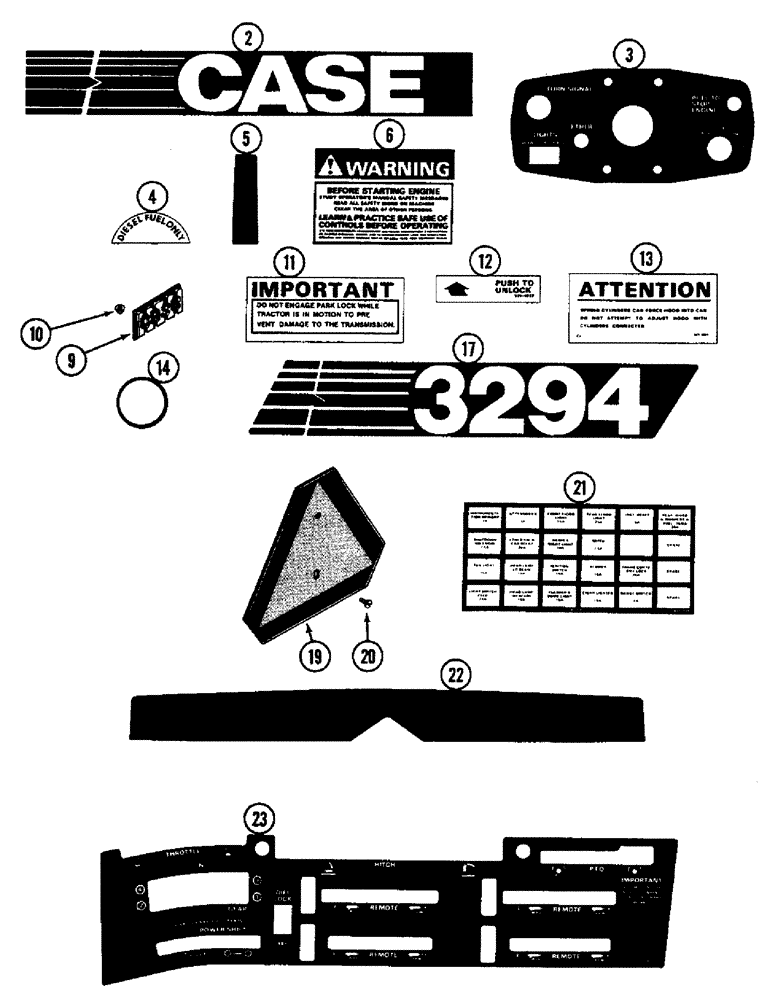

Запчасти Case IH 3294 (9-424) - TRACTOR DECALS, CASE (09) - CHASSIS/ATTACHMENTS

A67552

DECAL

KIT - tractor, Includes: Ref. 2 - 12

1шт.

2

A167963

DECAL

- Case stripe, right (On right decal panel)

1шт.

2

A167964

DECAL

- Case stripe, left (On left decal panel)

1шт.

3

321-5889

DECAL

- control panel (On steering column)

1шт.

4

321-4493

DECAL

- diesel fuel (On filler cap)

1шт.

5

321-4142

DECAL

- sight line (On hood)

1шт.

6

321-3705

DECAL

- starting instructions

1шт.

9

321-4739

EMBLEM

- front, Case mark

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-thread, 1/4 inch (Medallion to grille)

2шт.

11

321-5264

DECAL

- park lock (Not used this application)

1шт.

12

321-4622

DECAL

- hood unlatch (On hood)

1шт.

13

321-4621

DECAL

- tilt hood adjustment (On hood)

1шт.

14

A167962

DISC

PLATE - flasher insert (On flasher switch knob) (If equipped)

1шт.

17

A167973

DECAL

- 3294 (On right fender panel)

1шт.

17

A167974

DECAL

- 3294 (On left fender panel)

1шт.

19

A163604

DECAL

EMBLEM - SMV (Order D123347)

1шт.

20

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- Phillips pan head, 1/4-20 x 3/8 inch

2шт.

21

A177790

DECAL

- fuse location (Inside fuse panel) (Replaces A164570)

1шт.

22

321-6446

DECAL

- cab roof (On cab roof)

1шт.

23

A167979

DECAL

- console, 12 speed without parklock (On console cover)

1шт.

A46520

DECAL

KIT - French language, Includes: Ref. 4 - 13 shown below and steering console decal, two 12 speed chart decals, and 8 speed chart decal and parts in Figure 9-428

1шт.

4

321-5793

DECAL

- diesel fuel, French language

1шт.

6

321-6646

DECAL

- starting instructions, French language

1шт.

11

321-5789

DECAL - park lock engagement, French language

1шт.

12

321-5625

DECAL

- hood unlatch, French language

1шт.

13

321-5624

DECAL - tilt hood adjusting, French language

2шт.

321-6206

DECAL - steering console (Not used this application), French language

1шт.

321-5792

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5627

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5626

DECAL - 8 speed chart (Not used this application), French language

1шт.

321-5861

DECAL - fuse location (Not used this application), French language

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover) (Replaces: A169143), French language

1шт.
