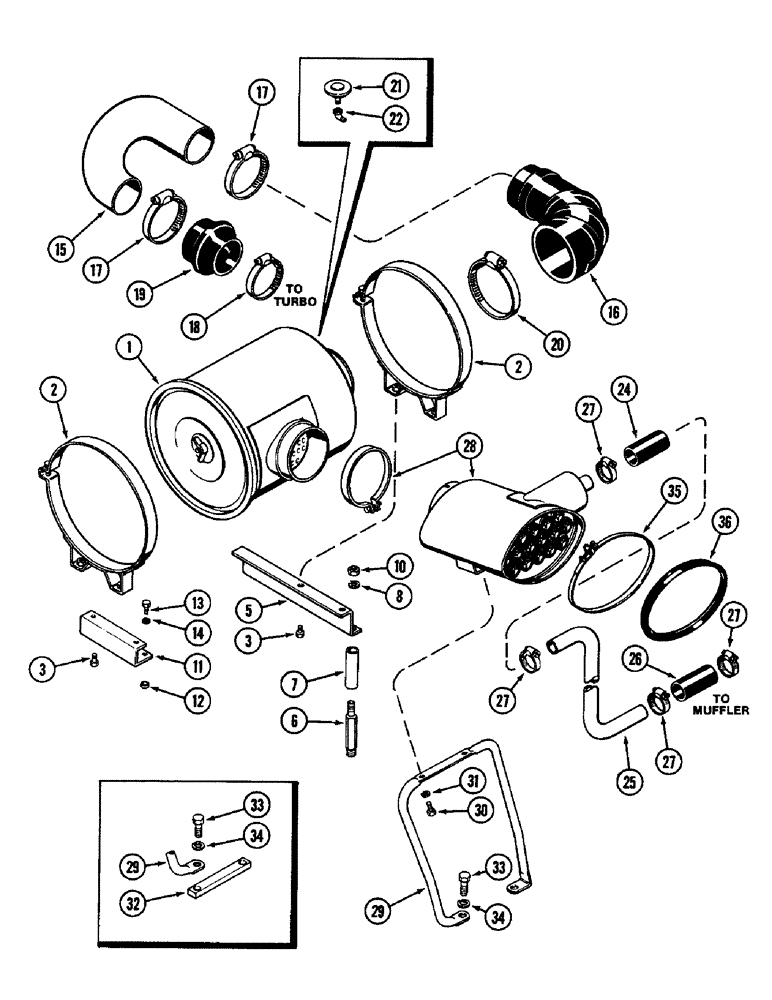

Запчасти Case IH 3294 (2-010) - AIR INDUCTION SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

CLEANER - air (See Figure 2-012)

1шт.

2

A138724

CLAMP

- cleaner mounting

2шт.

3

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

5

A147015

BRACKET

- cleaner support, left

1шт.

6

A64577

JACK SCREW,3/8" - 18 x 5.32"

- jack, cleaner bracket

2шт.

7

A147026

BUSHING

SPACER -, Serial Range: bracket-screw

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

A160650

BRACKET

- cleaner support, right

1шт.

12

A147031

BUSHING

SPACER -, Serial Range: cleaner-bracket

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

A160799

TUBE

- turbocharger inlet

1шт.

16

A147017

ELBOW,88.9mm ID x 362.204mm L

3.00" ID, 3.50" ID x 9.02" - Elbow, Cleaner outlet

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, worm screw type, no. 64

2шт.

18

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4 inch (71 x 95 MM)

1шт.

19

A147016

INTAKE AIR HOSE,88.90 mm ID x 88.90 mm, SAE J200

HOSE 3.00" ID, 3.50" ID x 3.50", SAE J200 - Reducer, Turbocharger inlet

1шт.

20

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose, worm screw type, no. 88

1шт.

21

A154782

SWITCH

- air restriction indicator (See Figure 4-066)

1шт.

22

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45 degree, 1/8 inch PT

1шт.

24

A160028

HOSE,1.25" ID x 3.75", SAE 20R1 PER SAE J20

1.25" ID x 3.75", SAE J20 - Aspirator, Black (Order A19633 - Cut to length)

1шт.

25

A166445

TUBE

- aspirator

1шт.

26

A161681

HOSE,31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

- Aspirator, Blue (Order A19633 - cut to length) 31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 x 45 MM)

4шт.

28

A166868

PRECLEANER

- air

1шт.

29

A147018

SUPPORT

- precleaner

1шт.

30

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

A147013

PLATE

SPACER - precleaner support (Used without air conditioning)

1шт.

33

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

35

A160244

STRAP

CLAMP - seal precleaner

1шт.

36

A160189

SEAL

- precleaner front

1шт.

A19633

HOSE,1.25" ID x 32.00", SAE 20R1

1.25" ID x 32.00", SAE 20R1

1шт.
