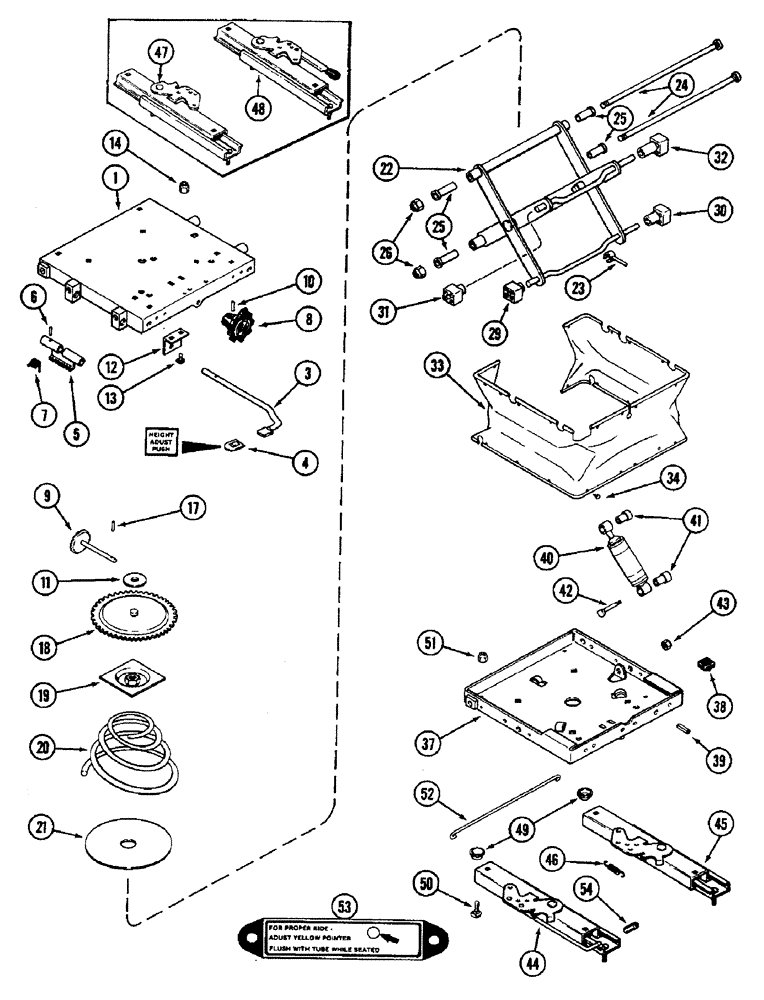

Запчасти Case IH 3294 (9-392) - CLOTH SEAT (09) - CHASSIS/ATTACHMENTS

A177452

SEAT

AND SUSPENSION ASSEMBLY, Includes: Ref. 1 - 54 in this figure and parts in Figures 9-388 and 9-390

1шт.

A167906

SEAT

AND SUSPENSION ASSEMBLY, Includes: Ref. 1 - 54 in this figure and parts in Figures 9-388 and 9-390

1шт.

1

A47761

PLATE

BASE - suspension, upper

1шт.

3

A47764

LEVER

- height adjusting

1шт.

4

123969A1

SEAT ACCESSORY

Cap - lever (Replaces N6858, A47767)

1шт.

5

A47381

LATCH

- height adjusting

1шт.

7

A47382

SPRING

- latch return

1шт.

8

N6855

KNOB

- weight adjusting (Replaces: A47763)

1шт.

9

A45513

GEAR

- weight adjusting

1шт.

10

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, , Spirol 5/32" x 3/4", Slotted

1шт.

11

D82834

WASHER

- thrust

1шт.

12

A45531

BRACKET

- shaft

1шт.

13

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch (Grade 2)

2шт.

14

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

17

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

18

A45505

GEAR

- weight adjusting

1шт.

19

A45504

SPRING WASHER

- spring

1шт.

20

A45497

SPRING

- weight suspension

1шт.

21

A45530

PAD

- spring

1шт.

22

N6872

ARM

ASSEMBLY - weight (Replaces: A47759)

1шт.

23

A49160

INDICATOR

- ride adjustment

1шт.

24

A47762

SHAFT

- bearing

2шт.

25

A47760

BUSHING

TUBE - bearing

4шт.

26

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

2шт.

29

A45512

BLOCK

- slider, 1-3/16 inch (30 MM)

1шт.

30

A45516

BLOCK

- slider, 2-3/16 inch (56 MM)

1шт.

31

A45515

BLOCK

- slider, 1-9/16 inch (40 MM)

1шт.

32

A45517

BLOCK

- slider, 2-9/16 inch (65 MM)

1шт.

33

A47359

BOOT

COVER - suspension

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

- 1/4 inch

21шт.

37

A48181

BASE

- suspension, lower

1шт.

38

A45054

BUMPER,Neoprene

- seat

2шт.

39

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

40

A45503

SHOCK ABSORBER

- seat

1шт.

41

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

42

A45056

STEP BOLT

BOLT - shoulder

1шт.

43

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

44

A49653

SLIDE

ASSEMBLY - seat mounting, right (Includes lever and spring), Includes: Ref. 46

1шт.

45

A45523

SLIDE

ASSEMBLY - seat mounting, left (Includes spring), Includes: Ref. 46

1шт.

46

L35503

SPRING

- latch return

1шт.

47

A45523

SLIDE

ASSEMBLY - seat mounting, right (Includes spring)

1шт.

48

A45522

SLIDE

ASSEMBLY - seat mounting, left (Includes lever and spring)

1шт.

L35503

SPRING

- latch return (See Ref. 46)

1шт.

49

S115782

BUSHING

SPACER - slide (Order A45111)

4шт.

50

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - round head square neck, 5/16 NC x 7/8 inch

2шт.

50

A47171

CARRIAGE BOLT

BOLT - round head square neck, 5/16 x 7/8 inch NC

2шт.

51

131-464

LOCK NUT,5/16"-18, G8

NUT - hex jam lock, 5/16 inch NC

4шт.

52

A48182

ROD

- latch connecting

1шт.

53

A47778

DECAL

- ride adjusting

1шт.

54

A45481

HANDLE

- grip

1шт.
