(9-388) - CLOTH SEAT, WITH ISOLATOR ATTACHMENT

Запчасти Case IH 3294 (9-388) - CLOTH SEAT, WITH ISOLATOR ATTACHMENT (09) - CHASSIS/ATTACHMENTS

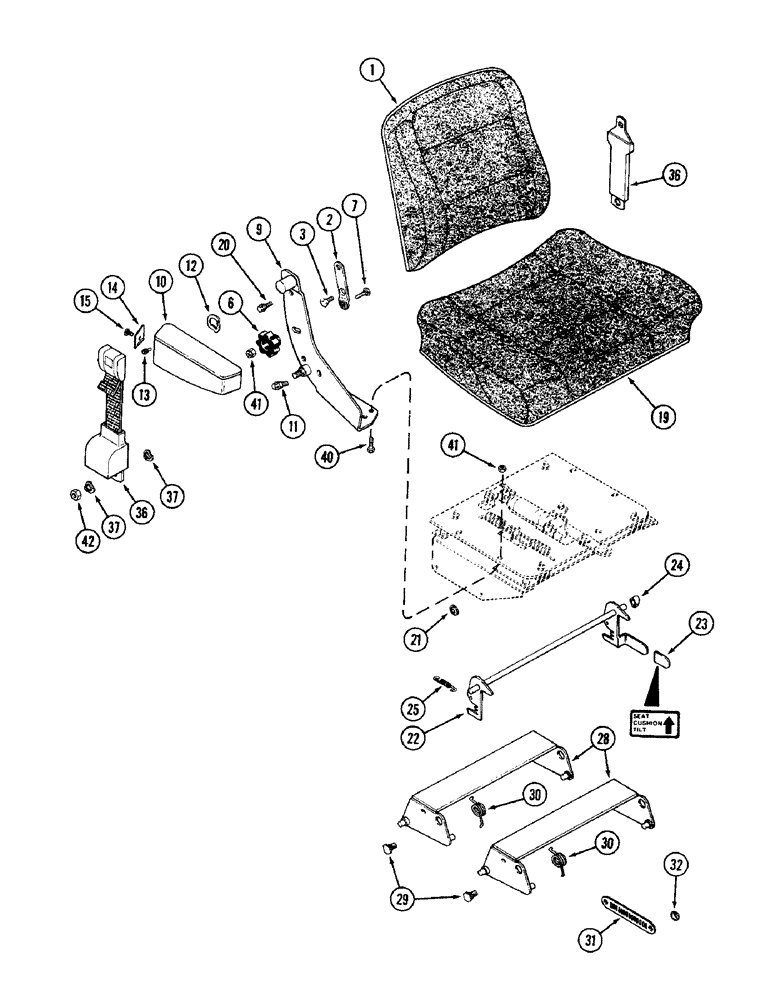

Схема запчастей Case IH 3294 - (9-388) - CLOTH SEAT, WITH ISOLATOR ATTACHMENT (09) - CHASSIS/ATTACHMENTS
9
30
10
24
13
22
1
31
41
37
14
11
20
29
15
32
12
36
37
6
21
30
7
19
40
42
25
2
41
28
36
3
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A177452

SEAT

AND SUSPENSION ASSEMBLY - operator (Right lever) (Order A181028), Includes: seat backrest assembly and Ref. 1 - 20 and 22 - 32 in this figure and parts in Figures 9-390 and 9-392

1шт.

A167906

SEAT

AND SUSPENSION ASSEMBLY - operator (Left lever) (Order A181028), Includes: seat backrest assembly and Ref. 1 - 20 and 22 - 32 in this figure and parts in Figures 9-390 and 9-392

1шт.

A46998

CUSHION

BACKREST ASSEMBLY - seat, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest (Order A46998)

1шт.

2

A48343

LINK

- backrest tilt

2шт.

3

184-1270

SCREW - flat head, 3/8 NC x 1 inch

2шт.

6

A45487

BUTTON

KNOB - tilt backrest

2шт.

7

A45527

CARRIAGE BOLT

- round head square neck, 3/8 NC x 1-1/2 inch

2шт.

9

A46900

STUD

BRACKET - armrest, right (Shown) (Replaces A46159) (Order K260708)

1шт.

9

A46910

BRACKET

- armrest, left (Replaces: A49158)

1шт.

10

A45489

ARMREST

- seat, right (Shown)

1шт.

10

A45488

ARMREST

- seat, left

1шт.

11

A48347

BOLT

- hex, special, 1/2 NC x 1-1/4 inch

2шт.

12

A47352

WASHER

- wave

2шт.

13

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - socket head, armrest, 1/4 NC x 1/2 inch

2шт.

14

A45584

COVER

PLATE - armrest, right (Shown)

1шт.

14

A45583

PLATE

COVER PLATE - armrest, left

1шт.

15

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - pan head, self-tapping, No. 10 x 5/8 inch

2шт.

19

A46990

CUSHION

- seat

1шт.

20

A48346

BOLT

- hex, special, 3/8 NC x 1-1/8 inch

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

22

A47346

LEVER

- seat assembly tilt

1шт.

23

A47347

CAP

- tilt lever

1шт.

24

A45482

BUSHING

SPACER - tilt lever shaft

2шт.

25

NLS

NO LONGER SERVICED

- tilt lever shaft tension

2шт.

28

A47379

LINK

- seat mounting cross

2шт.

29

A45473

STEP BOLT

BOLT - hex shoulder, 1/2 NC x 3/4 inch

4шт.

30

D82863

SPRING

- torsion

2шт.

31

A47383

LINK

- connecting

2шт.

32

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

36

A46982

SAFETY BELT

SAFETY BELT

1шт.

37

A46987

WASHER

- wave

4шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

41

131-179

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8 inch NC

6шт.

42

131-492

NUT,1/2"-13

NUT - lock, 1/2 inch

2шт.
