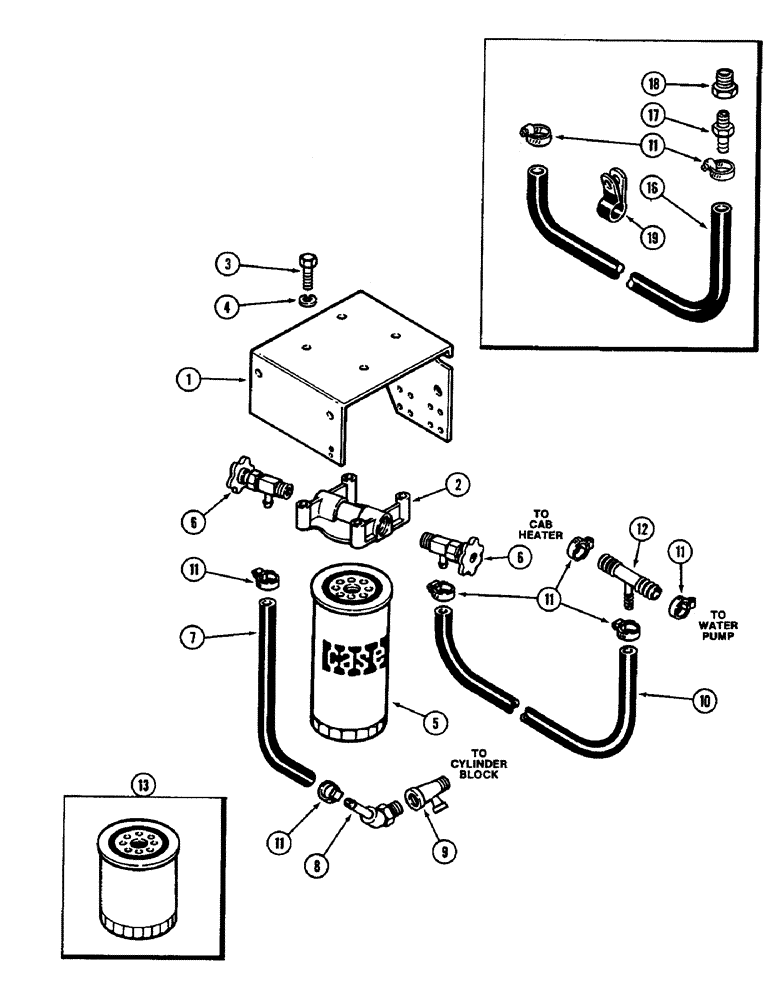

Запчасти Case IH 3294 (2-006) - WATER FILTER, 504BDT DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

SUPPORT - throttle cable and filter head (See Figure 3-058)

1шт.

A46400

KIT

- water filter and conditioner, Includes: Ref. 2 - 12

1шт.

2

A152821

HEAD

- filter and valve

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(See Figure 3-050) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

A152819

FILTER

CARTRIDGE - water filter, precharged (See Ref. 13)

1шт.

6

A154051

COCK, DRAIN

VALVE - water

2шт.

7

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Block (Order A154065 - cut to length)

1шт.

8

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 45 degree, 1/4 PT x 3/8 inch

1шт.

9

221-1691

TEE,Street, 1/4" NPT

CONNECTOR - branch, 1/4 x 1/4 x 1/4 inch (In block)

1шт.

10

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

- Valve to heater hose (Order A154065 - cut to length) 9.60 mm ID x 558.80 mm, SAE 20R3

1шт.

11

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch (14 to 27 mm)

6шт.

12

A154014

CONNECTOR, ELEC

CONNECTOR - branch, heater hose shift

1шт.

13

A151931

FILTER

CARTRIDGE - water filter, service

1шт.

A154065

HOSE,0.38" ID x 36.00", SAE 20R3 PER SAE J20

0.38" ID x 36.00", SAE 20R3

1шт.

16

A154065

HOSE,0.38" ID x 36.00", SAE 20R3 PER SAE J20

0.38" ID x 36.00", SAE 20R3 - Filter to Water Pump (Used on Tractors Without Heater)

1шт.

17

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector - straight 3/8" Hose X 1/4" NPTF Beaded

1шт.

18

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - reducer, 1/4 to 1/2 inch PT

1шт.

19

NLS

NO LONGER SERVICED

- retaining

1шт.
