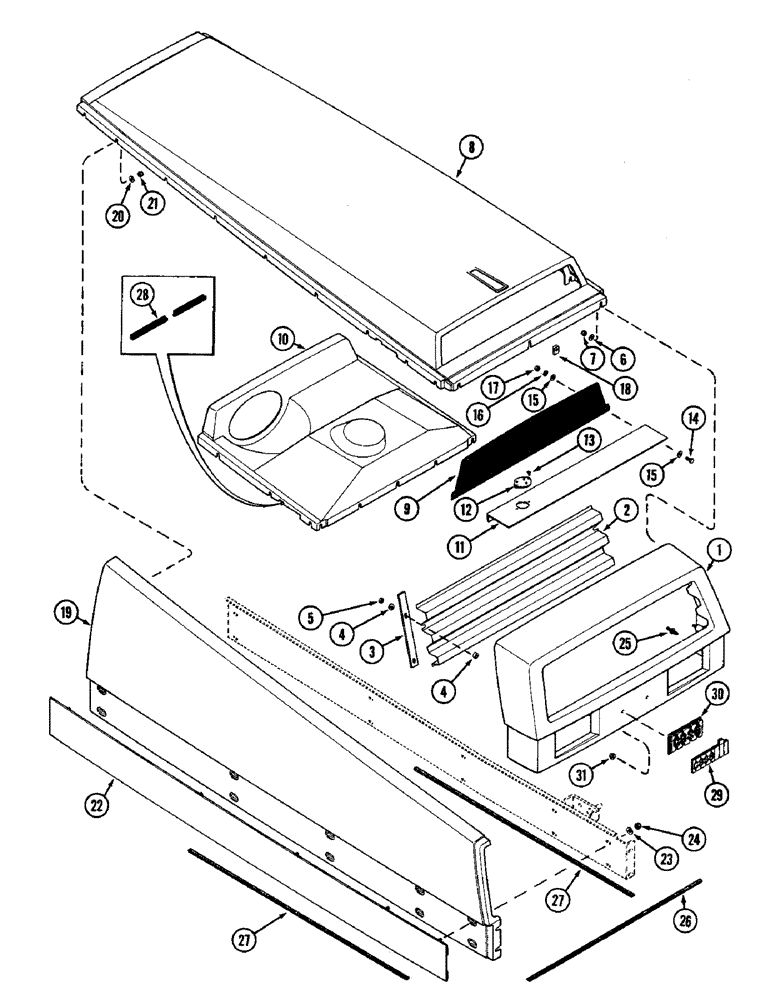

Запчасти Case IH 3294 (9-382) - UPPER GRILLE, HOOD AND PANELS (09) - CHASSIS/ATTACHMENTS

1

A181464

GRILLE ASSY

GRILLE ASSEMBLY - upper (Includes studs, see Ref 15) (Red)

1шт.

1

A145676

GRILLE

ASSEMBLY - upper (Includes studs, see Ref 15) (White)

1шт.

2

A162559

SCREEN

- upper grille

1шт.

3

A147667

BRACKET

- grille screen

2шт.

4

A147030

SPACER

- grille screen

8шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

6

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

3шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

8

A145580

GUARD

HOOD - upper (White)

1шт.

8

A181461

HOOD

- upper (Red)

1шт.

9

A162556

SCREEN

- air scoop

1шт.

10

A177522

SCOOP

- hood inner (Replaces A147041)

1шт.

11

A149718

BAFFLE

- air scoop screen

1шт.

12

A149329

LENS

- sight, air conditioning

1шт.

13

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - No. 6-32 x 3/8 inch

2шт.

14

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

15

195-133

WASHER,5/16" x 3/4" x .065"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 MM)

13шт.

16

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4 inch NC

5шт.

18

131-135

SPRING NUT,Tinn, U, 1/4"-20

3шт.

19

A145622

PANEL

ASSEMBLY - left side (Includes studs, see Ref 25) (White)

1шт.

19

A181463

PANEL

ASSEMBLY - left side (Includes studs, see Ref 25) (Red)

1шт.

19

A145623

PANEL

ASSEMBLY - right side (Includes studs, see Ref 25) (White)

1шт.

19

A181462

PANEL

ASSEMBLY - right side (Includes studs, see Ref 25) (Red)

1шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

18шт.

21

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

18шт.

22

A145688

PANEL

- decal

2шт.

23

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

20шт.

24

131-205

LOCK NUT,5/16"-18

NUT - hex jam lock, 5/16 inch NC

20шт.

25

A160247

STUD

- hood mounting, 1/4 inch NC

1шт.

26

A162383

SEAL

SEAL - front, hood to grille (Order A162397 and cut to required length)

1шт.

A162397

SEAL

- adhesive sided, 50 feet (15.24 M) roll

1шт.

27

A162381

STRIP

SEAL - hood to side panel (Order A162398 and cut to required length)

2шт.

A162398

SEAL

- adhesive sided, 50 feet (15.24 M) roll

1шт.

28

A149328

SEAL

MOULDING - hood flange (Order F42827)

1шт.

29

A181437

EMBLEM CASE/IH

EMBLEM - grille, Case IH mark

1шт.

30

321-4739

EMBLEM

- grille, Case mark

1шт.

31

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4 inch

2шт.

32

A145732

FRAME

- hood, left

1шт.

32

A145730

FRAME

- hood, right (Shown)

1шт.
