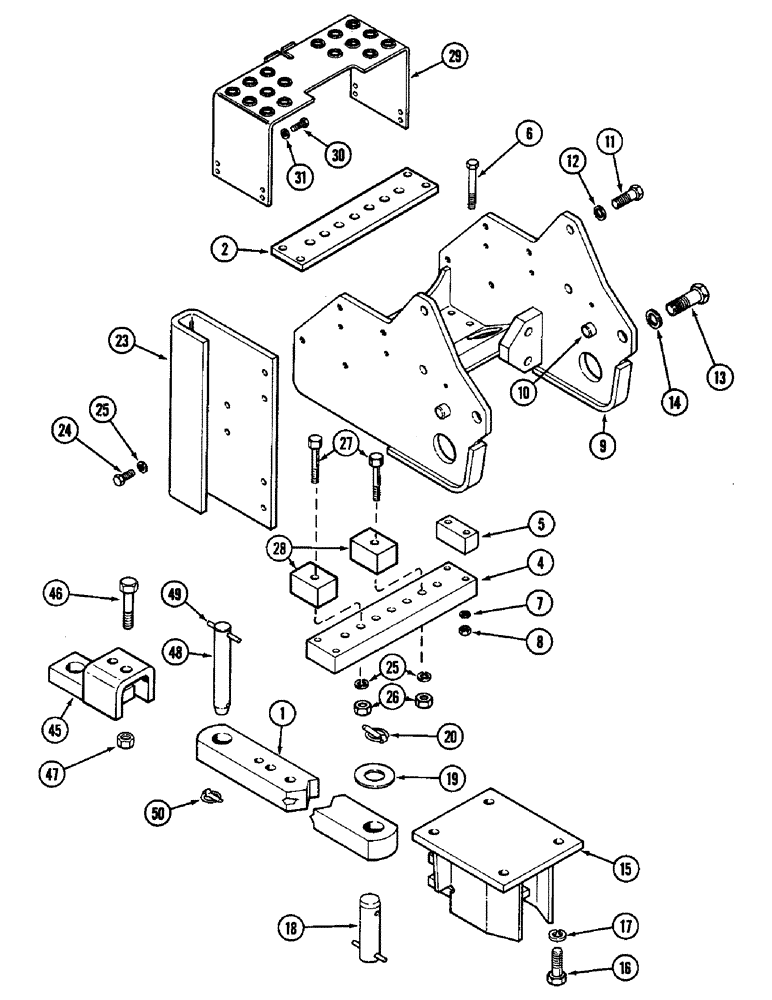

Запчасти Case IH 3294 (9-370) - DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A160824
DRAWBAR, SWINGING
DRAWBAR - tractor
1шт.
2
A167779
PLATE
- reinforcing, support, drawbar
1шт.
4
A135981
BAR
- support, drawbar rear
1шт.
5
A166349
SPACER
- drawbar
2шт.
7
92-8
LOCK WASHER,1/2"
4шт.
8
129-105
NUT,Hex, 1/2" - 13, Gr 5
4шт.
9
A164218
BRACKET
- support, drawbar, Includes: Ref. 10
1шт.
10
A161440
PIN
- crossbar link
2шт.
11
113-708
BOLT,Hex, 3/4" - 10 x 2", Gr 5
4шт.
12
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
13
113-917
BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd
2шт.
14
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
15
A160820
BRACKET
- front support and pivot
1шт.
16
113-712
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
4шт.
17
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
18
A160831
PIN
- pivot, drawbar
1шт.
19
A160830
WASHER
- pivot pin
1шт.
20
D33805
PIN
- klik
1шт.
23
A162833
BRACKET
STOP - draft arm sway
2шт.
24
13-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd
- hex, 1/2 NC x 1-3/4 inch
2шт.
24
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
25
92-8
LOCK WASHER,1/2"
6шт.
26
129-105
NUT,Hex, 1/2" - 13, Gr 5
3шт.
28
A166403
STOP
- drawbar
2шт.
29
A164215
GUARD
SHIELD - PTO
1шт.
31
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
A67493
CLEVIS
YOKE ATTACHMENT - drawbar (Machinery item), Includes: Ref. 45 - 50
1шт.
45
A161230
CLEVIS
YOKE - drawbar
1шт.
46
26-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8
- hex, 3/4 NC x 2-3/4 inch
1шт.
46
26-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8
- hex, 5/8 NC x 2-3/4 inch
1шт.
47
129-138
NUT,3/4"-10, G8
1шт.
47
129-183
NUT,5/8"-11, G8
1шт.
48
A65764
PIN
ASSEMBLY - implement, Includes: Ref. 49 and 50
1шт.
49
138-326
LOCK PIN,3/8" x 3 1/4", Slotted
Pin, 3/8" x 3 1/4", Slotted
1шт.
50
A30338
PIN
- klik
1шт.
Выбрано товаров: 38
