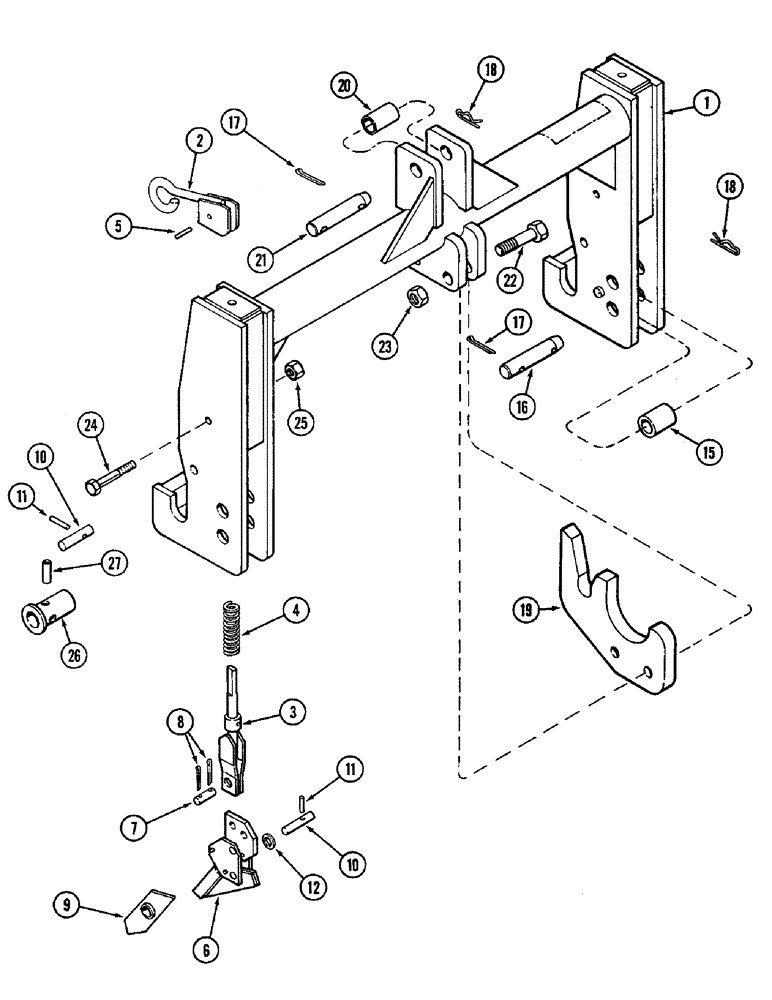

Запчасти Case IH 3294 (9-366) - QUICK HITCH COUPLER, CATEGORY II, WITH STRAIGHT FRAME (09) - CHASSIS/ATTACHMENTS

A65707

COUPLER ATTACHMENT - quick hitch (Machinery item), Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order A65707)

1шт.

2

A45456

HANDLE

- hitch release

2шт.

3

A45018

ROD

- handle to tripping device

2шт.

4

A45461

SPRING

- release rod

2шт.

5

135-75

GROOVED PIN,1/4" x 1", Type A

PIN - roll, 1/4 x 1 inch

2шт.

6

A45454

LEVER

- lock, right

1шт.

6

A45457

LEVER

- lock, left

1шт.

7

A45460

PIN

- 1-3/8 inch long

2шт.

8

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

9

A44470

LEVER

- lower trip ratchet, right

1шт.

9

A44471

LEVER

- lower trip ratchet, left

1шт.

10

A45459

PIN

- 2-1/2 inch long

2шт.

11

135-56

GROOVED PIN,3/16" x 1 1/2", Type A

PIN - roll, 3/16 x 1-1/2 inch

2шт.

12

195-41

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 1/8 inch (17 x 33 x 3 mm)

2шт.

15

A43542

SLEEVE

- lower draft arm pin

2шт.

16

A43540

AXLE PIN

PIN - lower, draft arm (Order A45462)

2шт.

17

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

18

T50113

PIN

- clinch, draft arm pin

3шт.

19

A44475

LUG

- upper hitch attaching

1шт.

20

A44474

SLEEVE

- upper draft arm pin

1шт.

21

A43541

PIN

- upper, draft arm

1шт.

22

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

23

129-108

NUT,3/4"-10, G5

- hex, 1/4 inch NC

2шт.

24

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

25

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, 1/2 inch NC

2шт.

26

T32995

ADAPTER

- hitch coupler, 1-1/8 inch ID

2шт.

27

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.
