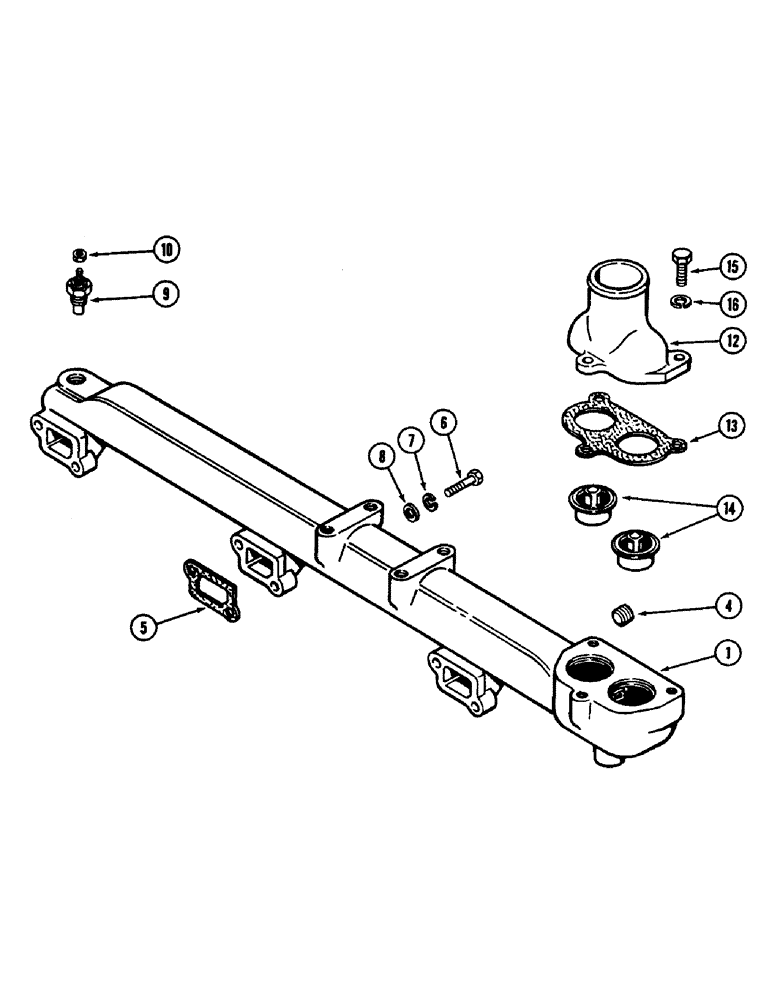

Запчасти Case IH 3294 (2-004) - WATER MANIFOLD AND THERMOSTAT, 504BDT DIESEL ENGINE (02) - ENGINE

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - water

1шт.

1

A152742

MANIFOLD

- water

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

2шт.

5

A166147

GASKET

- manifold (Replaces A58637)

3шт.

6

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

6шт.

9

A176566

TRANSMITTER

UNIT - sender, engine temperature (Replaces D65446)

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- No. 10-32 hex Keps

1шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A166148

GASKET

- housing (Replaces A58639)

1шт.

14

A57641

THERMOSTAT

- coolant, 180 degrees F (82 degrees C)

2шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
