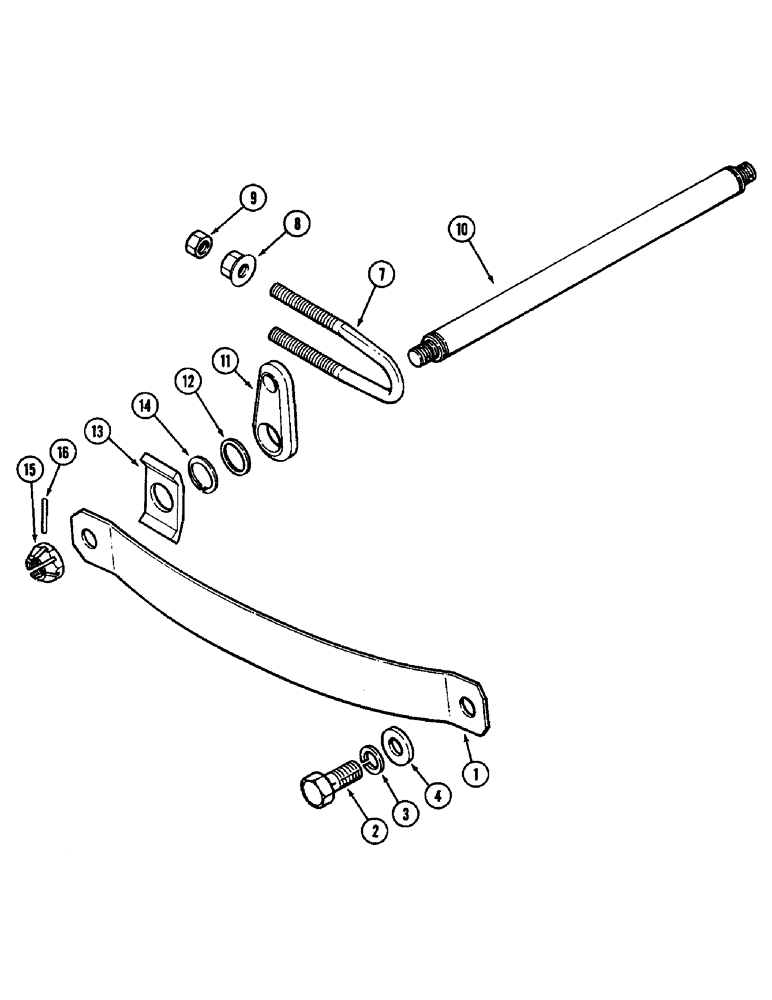

Запчасти Case IH 3294 (9-360) - HITCH SPRINGS AND SHAFT (09) - CHASSIS/ATTACHMENTS

1

A145753

SPRING

- sensing

2шт.

2

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

2шт.

3

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

4

195-2100

WASHER,1 1/32" x 2" x .238"

- flat, 1-1/32 x 2 x 1/4 inch (26 x 51 x 6 MM)

2шт.

7

A162689

BOLT

U-BOLT - cross shaft, 3/4 inch

2шт.

8

131-935

FLANGE NUT,Flg, 3/4"-10, G8

- flanged, 3/4 inch

4шт.

9

131-1338

LOCK NUT,3/4"-10, GA

NUT - hex, 7/8 inch NF

4шт.

10

A176923

BEAM

BAR - cross (Replaces A167799)

1шт.

11

A167660

LINK

- cross bar support

2шт.

12

A167661

WASHER

- spacer, draft arm

1шт.

13

A167662

PLATE

SPACER - spring

2шт.

14

A167663

RING

- snap

2шт.

15

A33404

NUT

- cross shaft

2шт.

16

138-2014

PIN,3/16" x 1 7/8", Coiled

2шт.
