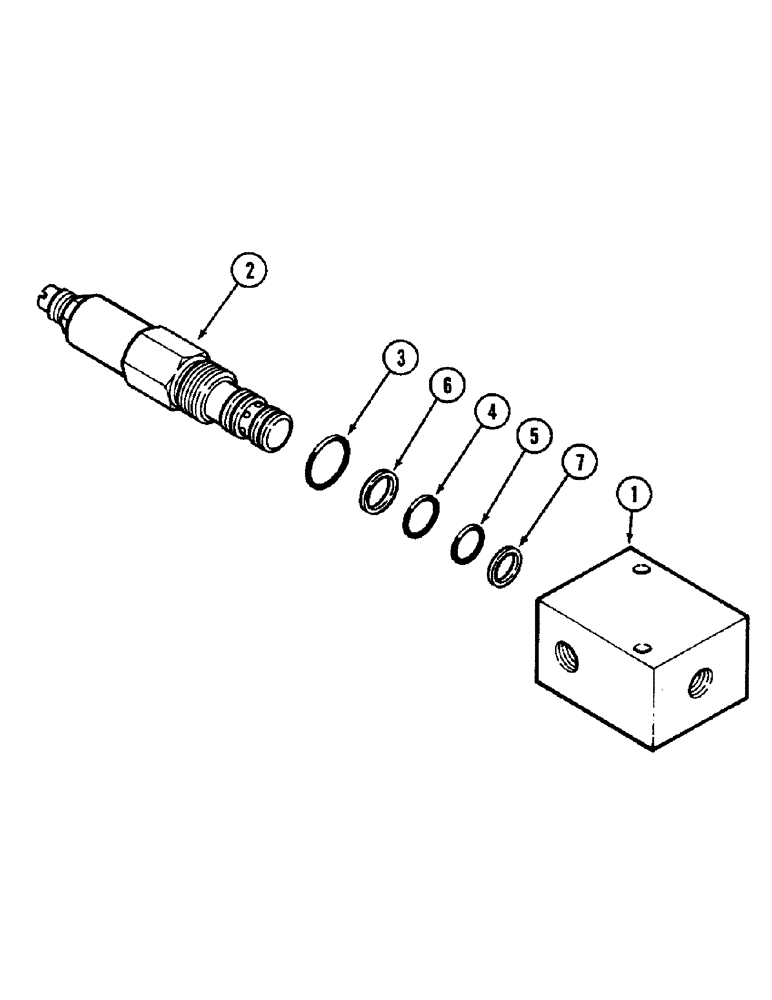

Запчасти Case IH 3294 (8-358) - SEAT HYDRAULICS, PRESSURE REGULATOR VALVE (08) - HYDRAULICS

A169536

VALVE

ASSEMBLY - pressure regulator, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A169536)

1шт.

2

A48951

VALVE

CARTRIDGE ASSEMBLY - valve, Includes: cartridge seal kit and Ref. 3 - 7

1шт.

A48950

KIT

SEAL KIT - cartridge (Order components), Includes: Ref. 3 - 7

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- sealing, 11/16 inch (17 MM) OD

1шт.

5

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- sealing, 1/2 inch (13 MM) OD

1шт.

6

L30012

RING

- teflon back-up

1шт.

7

T40181

RING

- teflon back-up

1шт.
